Using DImodelsVis with regression models not fit using the DImodels package • DImodelsVis

The DImodelsVis is very convenient to use with regression models fit using the DImodels R package. However, sometimes users could have more complicated models which couldn’t be fit using DImodels or they would prefer to have more flexibility and control in customising the plot or the underlying data.

For these situations, each plotting function has a corresponding data preparation and plotting function. The data preparation functions have an _data suffix while the plotting functions have an _plot suffix. This document describes how to use the data preparation functions to construct (and customise) the underlying data, which can then be passed to the plotting function for visualising the results.

Load libraries

library(DImodelsVis)
library(DImodels)
library(dplyr)

Load data

We use the sim4 data from the DImodels R package. This is a simulated dataset to represent typical data arising from a grassland experiment. We have several communities with one up to six species (p1-p6) sown at varying proportions. There is a treatment covariate representing the fertilisation level (in kg/ha/yr) applied in each community. Further, it is assumed that the species can be grouped based on the function they perform in the community, thus p1 and p2 are assumed to be grasses, with p3 and p4 being legumes, and p5 and p6 being herbs. The response variable is assumed to be annual aboveground dry-matter yield.

data("sim4")
head(sim4)
#>   richness treatment p1 p2 p3 p4 p5 p6 response
#> 1        1        50  1  0  0  0  0  0   26.325
#> 2        1        50  1  0  0  0  0  0   29.083
#> 3        1        50  1  0  0  0  0  0   27.581
#> 4        1        50  0  1  0  0  0  0   17.391
#> 5        1        50  0  1  0  0  0  0   15.678
#> 6        1        50  0  1  0  0  0  0   14.283

Fitting the model

We take a subset of the data with communities receiving 50 and 150 kg fertiliser and fit an lm model to this data where we model the response as a linear combination of the species proportions, the average interaction term (AV; see ?DI_data_E_AV for more interaction) and the fertiliser treatment. We also add an interaction between the average interaction term and fertiliser treatment, assuming that the amount of fertiliser in a plot affects the way species interact.

species <- c("p1", "p2", "p3", "p4", "p5", "p6")
FG <- c("Gr", "Gr", "Le", "Le", "He", "He")

model_data <- sim4 %>%
  mutate(AV = DI_data_E_AV(prop = species, data = .)$AV,
         treatment = as.factor(treatment))

mod <- lm(response ~  0 + p1 + p2 + p3 + p4 + p5 + p6 + (AV):treatment,
           data = model_data)

The model coefficients are as follows. Note: We have dropped the intercept from this model due to the compositional nature of the variables in the model.

summary(mod)
#>
#> Call:
#> lm(formula = response ~ 0 + p1 + p2 + p3 + p4 + p5 + p6 + (AV):treatment,
#>     data = model_data)
#>
#> Residuals:
#>    Min     1Q Median     3Q    Max
#> -6.292 -2.005 -0.220  1.901  7.286
#>
#> Coefficients:
#>                 Estimate Std. Error t value Pr(>|t|)
#> p1               30.2319     0.8397  36.003  < 2e-16 ***
#> p2               20.2040     0.8397  24.061  < 2e-16 ***
#> p3               22.1378     0.8397  26.364  < 2e-16 ***
#> p4               23.8764     0.8397  28.435  < 2e-16 ***
#> p5               13.5990     0.8397  16.195  < 2e-16 ***
#> p6               15.6690     0.8397  18.660  < 2e-16 ***
#> AV:treatment50   11.4637     2.1505   5.331 4.11e-07 ***
#> AV:treatment150  22.9882     2.1505  10.690  < 2e-16 ***
#> AV:treatment250  30.3752     2.1505  14.125  < 2e-16 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error: 2.934 on 132 degrees of freedom
#> Multiple R-squared:  0.9879, Adjusted R-squared:  0.987
#> F-statistic:  1193 on 9 and 132 DF,  p-value: < 2.2e-16

We proceed with this model and create visualisations for interpreting the results.

Model diagnostics plot

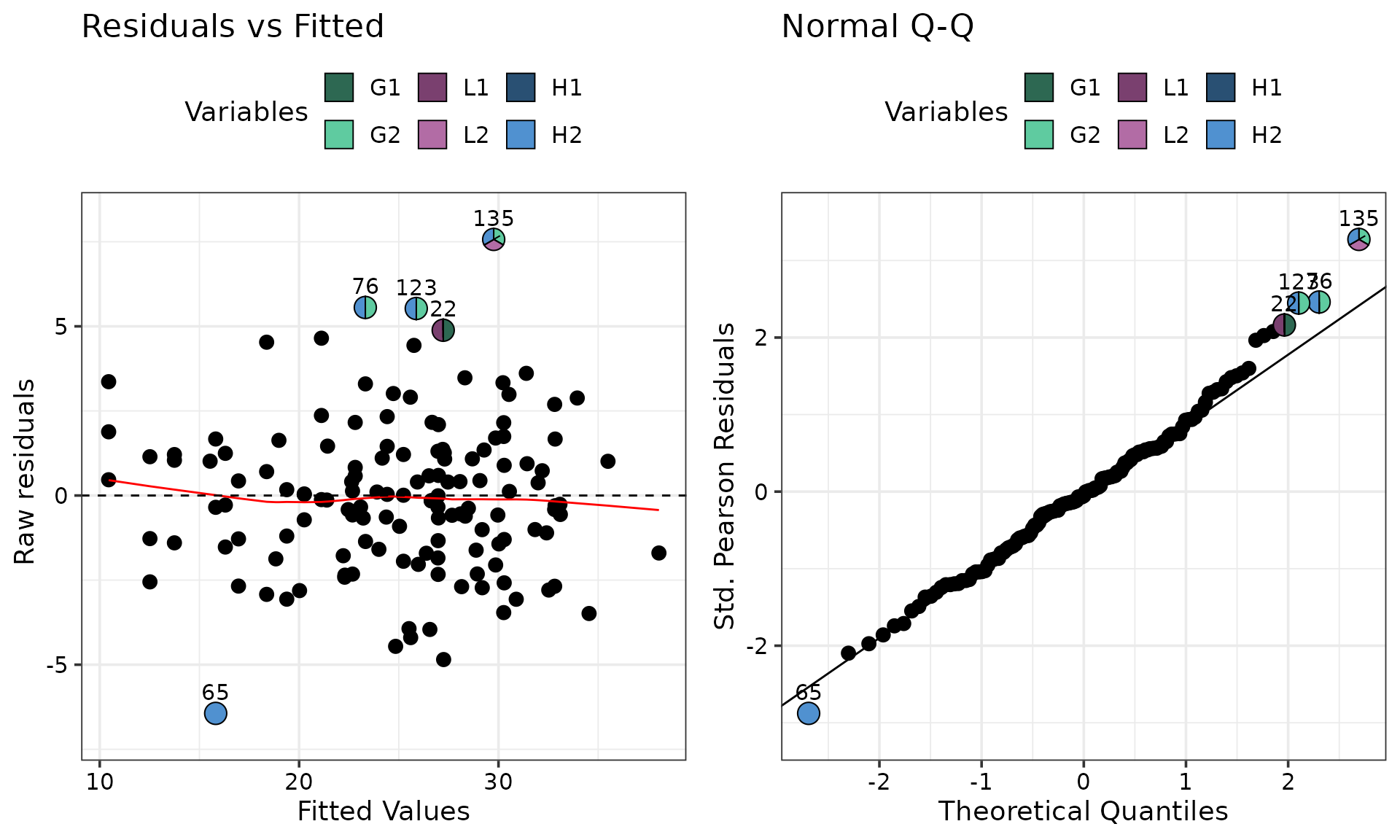

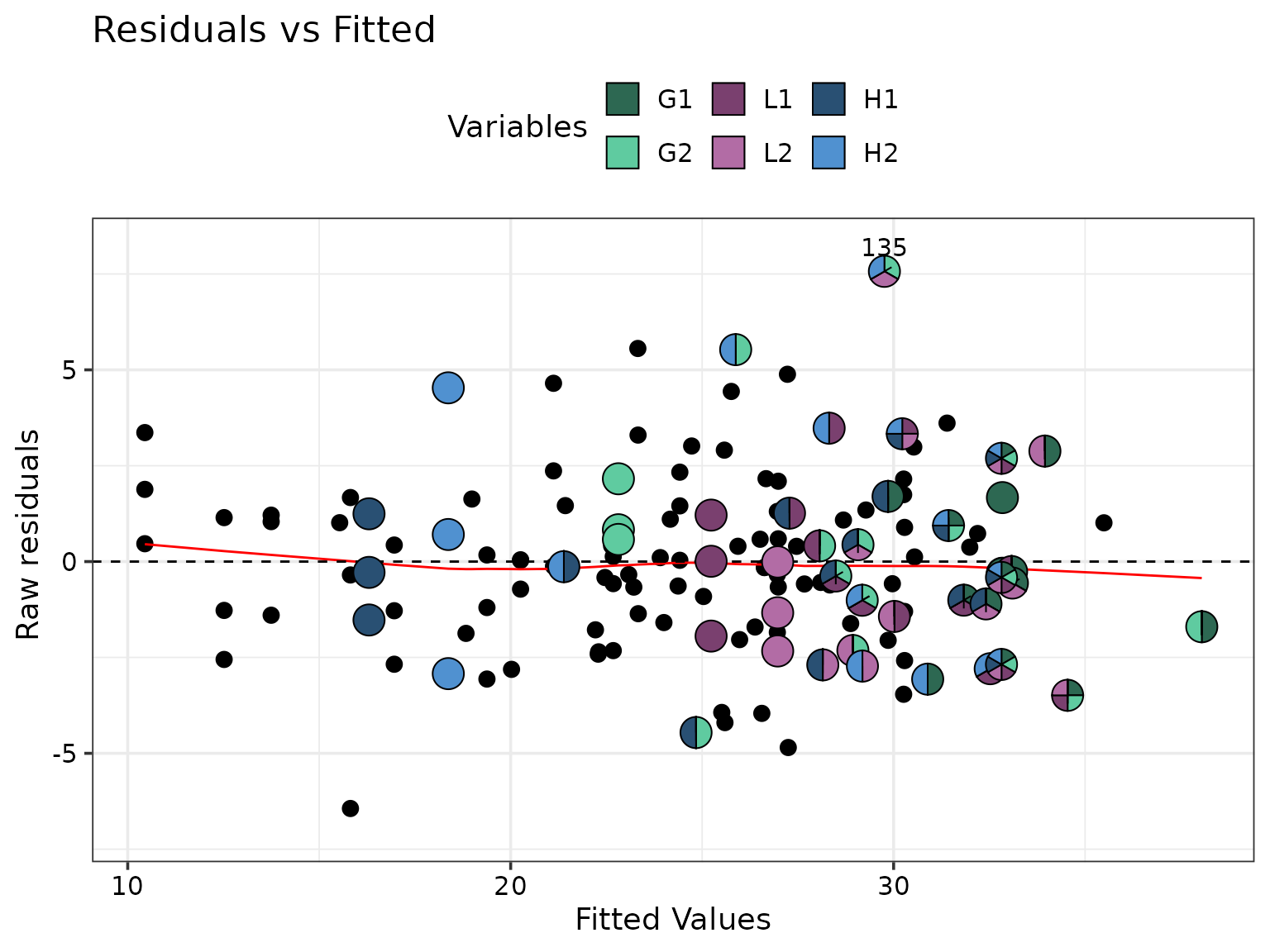

We first use the model_diagnostics function to check if all the underlying model assumptions are satisfied.

The only difference here is that in addition to the model object we also need to specify the prop parameter describing the name of the compositional variables in the model where species is a previously defined vector naming the six columns in the datast that contain the species proportions.

# Create model diagnostics plot with pie-glyphs showing species proportions
model_diagnostics(model = mod, prop = species)
#> ✔ Created all plots.

These plots indicate that model assumptions aren’t violated. Overlaying with pie-glyphs has the additional benefit that we can quickly identify the communities with unusual values. For example, the monocultures (communities with only one species) have a very high leverage value as seen in the Residuals vs Leverage plot.

Prediction contributions plot

We manually call the prediction_contributions_data function to prepare the data for visualising the contributions of the various terms in the regression model to the predicted response.

We use a subset of the original data consisting of the six monocultures and the equi-proportional community at the 50 kg fertilisation treatment.

Note: It is important for the specified data to have all the variables in the model. An error will be thrown if any variable is missing.

subset_data <- model_data[c(1, 4, 7, 10, 13, 16, 45), ]
print(subset_data)
#>    richness treatment        p1        p2        p3        p4        p5
#> 1         1        50 1.0000000 0.0000000 0.0000000 0.0000000 0.0000000
#> 4         1        50 0.0000000 1.0000000 0.0000000 0.0000000 0.0000000
#> 7         1        50 0.0000000 0.0000000 1.0000000 0.0000000 0.0000000
#> 10        1        50 0.0000000 0.0000000 0.0000000 1.0000000 0.0000000
#> 13        1        50 0.0000000 0.0000000 0.0000000 0.0000000 1.0000000
#> 16        1        50 0.0000000 0.0000000 0.0000000 0.0000000 0.0000000
#> 45        6        50 0.1666667 0.1666667 0.1666667 0.1666667 0.1666667
#>           p6 response        AV
#> 1  0.0000000   26.325 0.0000000
#> 4  0.0000000   17.391 0.0000000
#> 7  0.0000000   16.317 0.0000000
#> 10 0.0000000   25.768 0.0000000
#> 13 0.0000000   12.330 0.0000000
#> 16 1.0000000    9.965 0.0000000
#> 45 0.1666667   25.118 0.4166667

plot_data <- prediction_contributions_data(data = subset_data,
                                           model = mod)
#> ✔ Finished data preparation.
plot_data
#> # A tibble: 49 × 10
#>    .Community richness treatment response    AV .Pred .Lower .Upper
#>    <fct>         <int> <fct>        <dbl> <dbl> <dbl>  <dbl>  <dbl>
#>  1 1                 1 50            26.3     0  30.2   28.6   31.9
#>  2 1                 1 50            26.3     0  30.2   28.6   31.9
#>  3 1                 1 50            26.3     0  30.2   28.6   31.9
#>  4 1                 1 50            26.3     0  30.2   28.6   31.9
#>  5 1                 1 50            26.3     0  30.2   28.6   31.9
#>  6 1                 1 50            26.3     0  30.2   28.6   31.9
#>  7 1                 1 50            26.3     0  30.2   28.6   31.9
#>  8 4                 1 50            17.4     0  20.2   18.5   21.9
#>  9 4                 1 50            17.4     0  20.2   18.5   21.9
#> 10 4                 1 50            17.4     0  20.2   18.5   21.9
#> # ℹ 39 more rows
#> # ℹ 2 more variables: .Contributions <chr>, .Value <dbl>

subset_data is expanded to include the model predictions (.Pred) along with the associated uncertainty (.Lower and .Upper). We also have a column labelled .Contributions identifying the names of all variables in the model along their values in .Value.

A benefit of using the data preparation functions is that, it’s also possible to create the data using model coefficients. This is particularly useful for cases when your statistical model is fit using a different software (SAS, SPSS, etc.) and it’s difficult to fit the same model in R. We could simply import the coefficients from the external model and use those to create our visualisations.

coeffs <- c("p1" = 30.23, "p2" = 20.20, "p3" = 22.13,
            "p4" = 23.88, "p5" = 13.60, "p6" = 15.67,
            "AV:treatment50" = 11.46,
            "AV:treatment150" = 22.99,
            "AV:treatment250" = 30.37)
# One could also export the variance-covariance matrix from another
# software as a .csv file and read it here using the read.csv() function
vcov_mat <- vcov(mod)

print(coeffs)
#>              p1              p2              p3              p4              p5
#>           30.23           20.20           22.13           23.88           13.60
#>              p6  AV:treatment50 AV:treatment150 AV:treatment250
#>           15.67           11.46           22.99           30.37

# Note when using model-coefficients, the data should be in the same order
# as the model coefficients
# We can use the model.matrix function to prepare our subset data in the necessary format
coeff_data <- model.matrix(~ 0 + p1 + p2 + p3 + p4 + p5 + p6 + AV:treatment,
                           data = subset_data) %>%
  as.data.frame()
print(coeff_data)
#>           p1        p2        p3        p4        p5        p6 AV:treatment50
#> 1  1.0000000 0.0000000 0.0000000 0.0000000 0.0000000 0.0000000      0.0000000
#> 4  0.0000000 1.0000000 0.0000000 0.0000000 0.0000000 0.0000000      0.0000000
#> 7  0.0000000 0.0000000 1.0000000 0.0000000 0.0000000 0.0000000      0.0000000
#> 10 0.0000000 0.0000000 0.0000000 1.0000000 0.0000000 0.0000000      0.0000000
#> 13 0.0000000 0.0000000 0.0000000 0.0000000 1.0000000 0.0000000      0.0000000
#> 16 0.0000000 0.0000000 0.0000000 0.0000000 0.0000000 1.0000000      0.0000000
#> 45 0.1666667 0.1666667 0.1666667 0.1666667 0.1666667 0.1666667      0.4166667
#>    AV:treatment150 AV:treatment250
#> 1                0               0
#> 4                0               0
#> 7                0               0
#> 10               0               0
#> 13               0               0
#> 16               0               0
#> 45               0               0

# Notice how the column names of the coefficients and coeff_data match exactly

# Use coefficients and vcov parameter to specify the coefficients and
# variance-covariance matrix respectively.
# Note: specifing a vcov matrix is necessary only if the user want the
# uncertainty associated with the prediction
plot_data <- prediction_contributions_data(data = coeff_data,
                                           coefficients = coeffs,
                                           vcov = vcov_mat)
#> ✔ Finished data preparation.
head(plot_data)
#> # A tibble: 6 × 6
#>   .Community .Pred .Lower .Upper .Contributions .Value
#>   <fct>      <dbl>  <dbl>  <dbl> <chr>           <dbl>
#> 1 1           30.2   28.6   31.9 p1               30.2
#> 2 1           30.2   28.6   31.9 p2                0
#> 3 1           30.2   28.6   31.9 p3                0
#> 4 1           30.2   28.6   31.9 p4                0
#> 5 1           30.2   28.6   31.9 p5                0
#> 6 1           30.2   28.6   31.9 p6                0

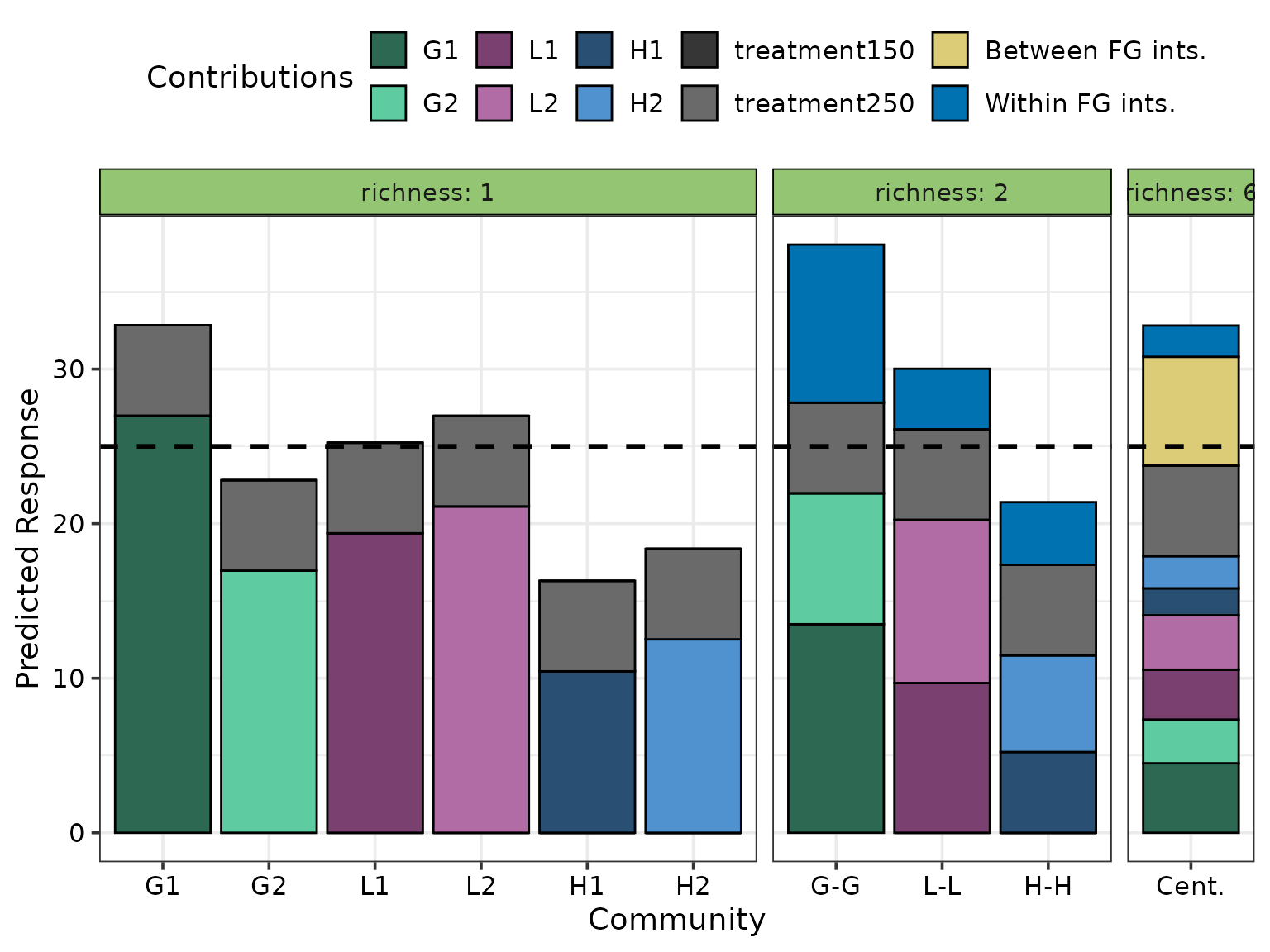

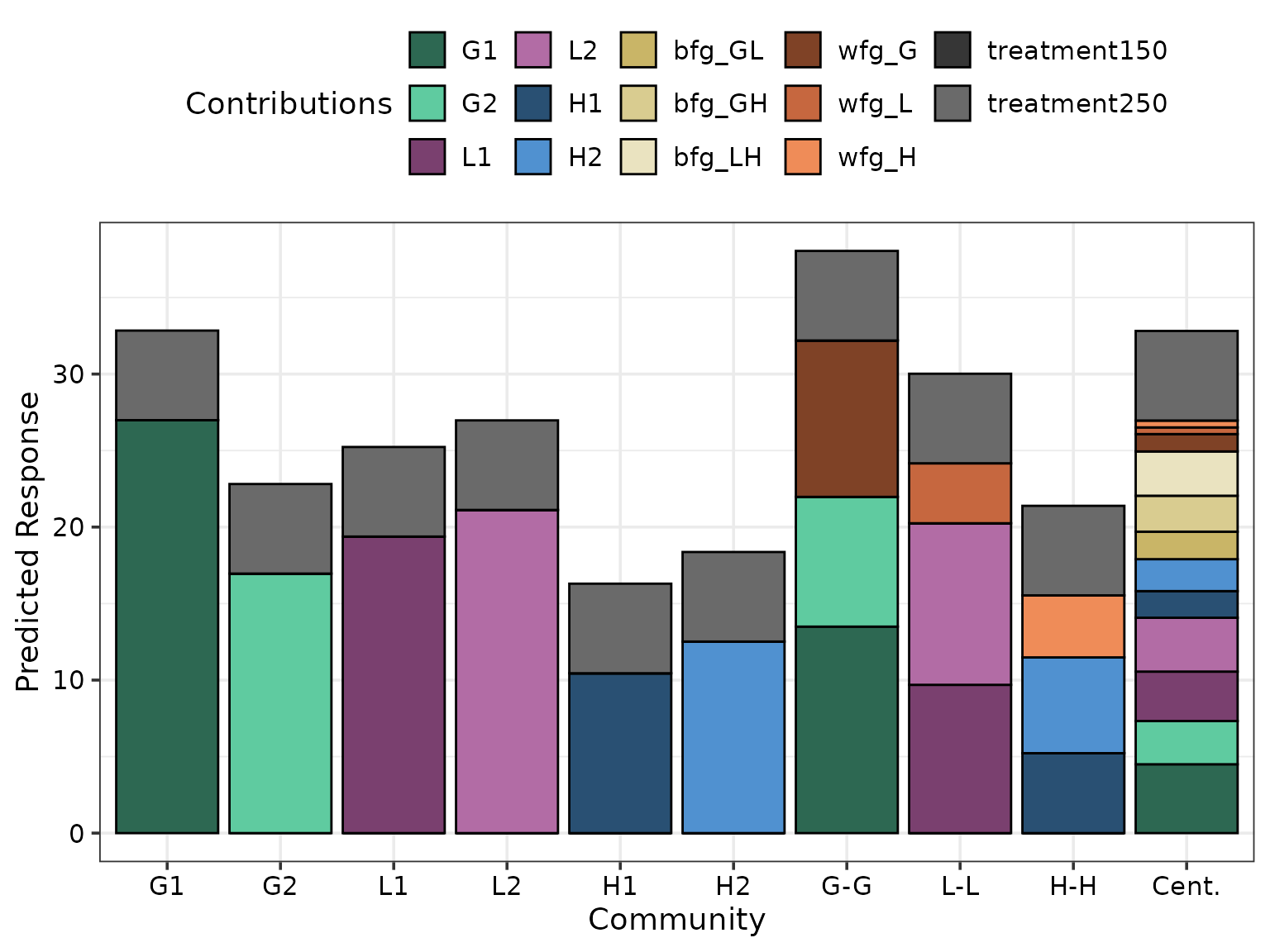

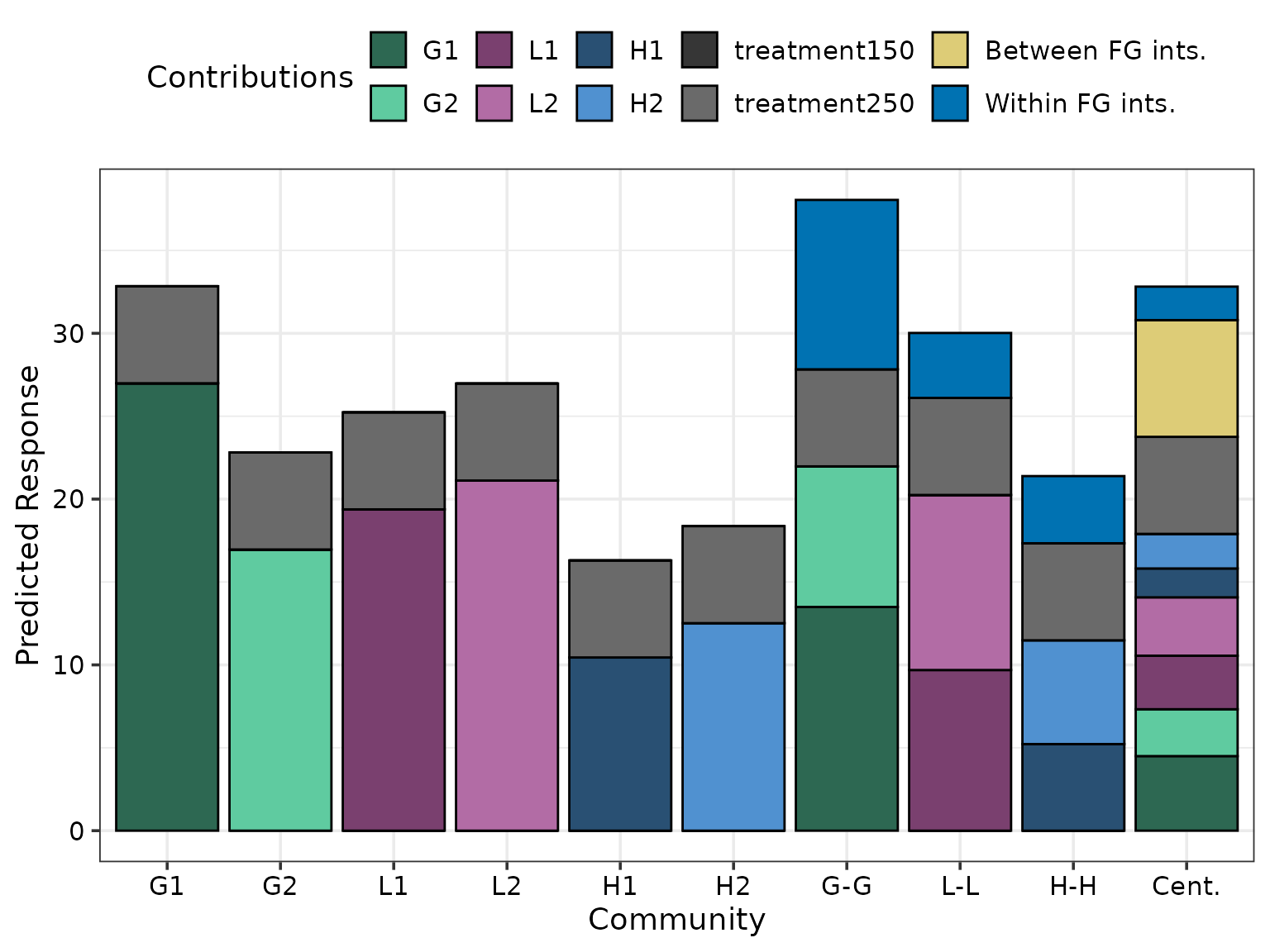

This data can then be passed to the prediction_contributions_plot function to visualise the results.

prediction_contributions_plot(data = plot_data)
#> ✔ Created plot.

The predicted response is highest for the p1 monoculture. The centroid community also has a high prediction with the highest contribution coming from p1 and the average interaction term.

Average change over diversity gradient

We can use the gradient_change_data function to prepare data for visualising the average change in the predicted response over a diversity gradient. The resultant data would have the .Richness and .Evenness gradient values, .Gradient would have the name of the gradient chosen the calculate the average, .Pred has the predicted response while .Avg would have the average predicted response at each level of chosen diversity gradient.

Note: The calculated average is the mean of the communities specified in the data and not the average of all possible communities.

plot_data <- gradient_change_data(data = model_data, prop = species,
                                  model = mod)
#> ✔ Finished data preparation
head(plot_data)
#> # A tibble: 6 × 15
#>   richness treatment    p1    p2    p3    p4    p5    p6 response    AV
#>      <int> <fct>     <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>    <dbl> <dbl>
#> 1        1 50            1     0     0     0     0     0     26.3     0
#> 2        1 50            1     0     0     0     0     0     29.1     0
#> 3        1 50            1     0     0     0     0     0     27.6     0
#> 4        1 50            0     1     0     0     0     0     17.4     0
#> 5        1 50            0     1     0     0     0     0     15.7     0
#> 6        1 50            0     1     0     0     0     0     14.3     0
#> # ℹ 5 more variables: .Richness <dbl>, .Evenness <dbl>, .Gradient <chr>,
#> #   .Pred <dbl>, .Avg <dbl>

The output data can be passed to gradient_change_plot to visualise the results. We use the facet_var parameter and specify "treatment" to create a separate panel for each treatment.

gradient_change_plot(data = plot_data,
                     facet_var = "treatment")
#> ✔ Created plot.

As the richness increases, the predicted response increases but at a saturating rate. The average predicted response also increases as we increase the rate of fertilisation.

Effects plot for compositional data

The visualise_effect_data function can be used to create the data showing the change in the response as we increase/decrease the proportion of one of the variables in the data. Due to the compositional nature of the variables, changing the proportion of any one affects the proportion of all other variables. The function handles this by ensuring that as the proportion of any variable changes, all remaining variables are adjusted to ensure their relative proportion always stays constant.

We use the subset_data from before containing the six monocultures and six-species centroid community and see the effect of increasing the proportion of the species p1 and p3 (specified using var_interest) in these communities.

Note: Since the species interaction term depends on the proportions of the species, we use prediction = FALSE to create the template of species proportion first and then add the interaction structure.

Further, we manually call the add_prediction function to add the predictions to the resultant data.

plot_data <- visualise_effects_data(data = subset_data, prop = species,
                                    var_interest = c("p1", "p3"),
                                    effect = "increase",
                                    prediction = FALSE)
#> ✔ Finished data preparation.
plot_data <- plot_data %>% mutate(AV = DI_data_E_AV(data = .,
                                                    prop = species)$AV)
plot_data <- add_prediction(plot_data, model = mod, interval = "confidence")

The data is expanded to include the following columns

.Sp: The variable of interest who’s proportion is changed.
.Proportion: The proportion of the variable of interest in a community.
.Group: An identifier for creating the effects curve.
.Effect: A string describing whether the proportion of the variable of interest is increased or decreased.
.Pred: The predicted response for a community.
.Lower: The lower interval (at $% confidence level = 0.95$ level) for the predicted response.
.Upper: The upper interval (at $% confidence level = 0.95$ level) for the predicted response.

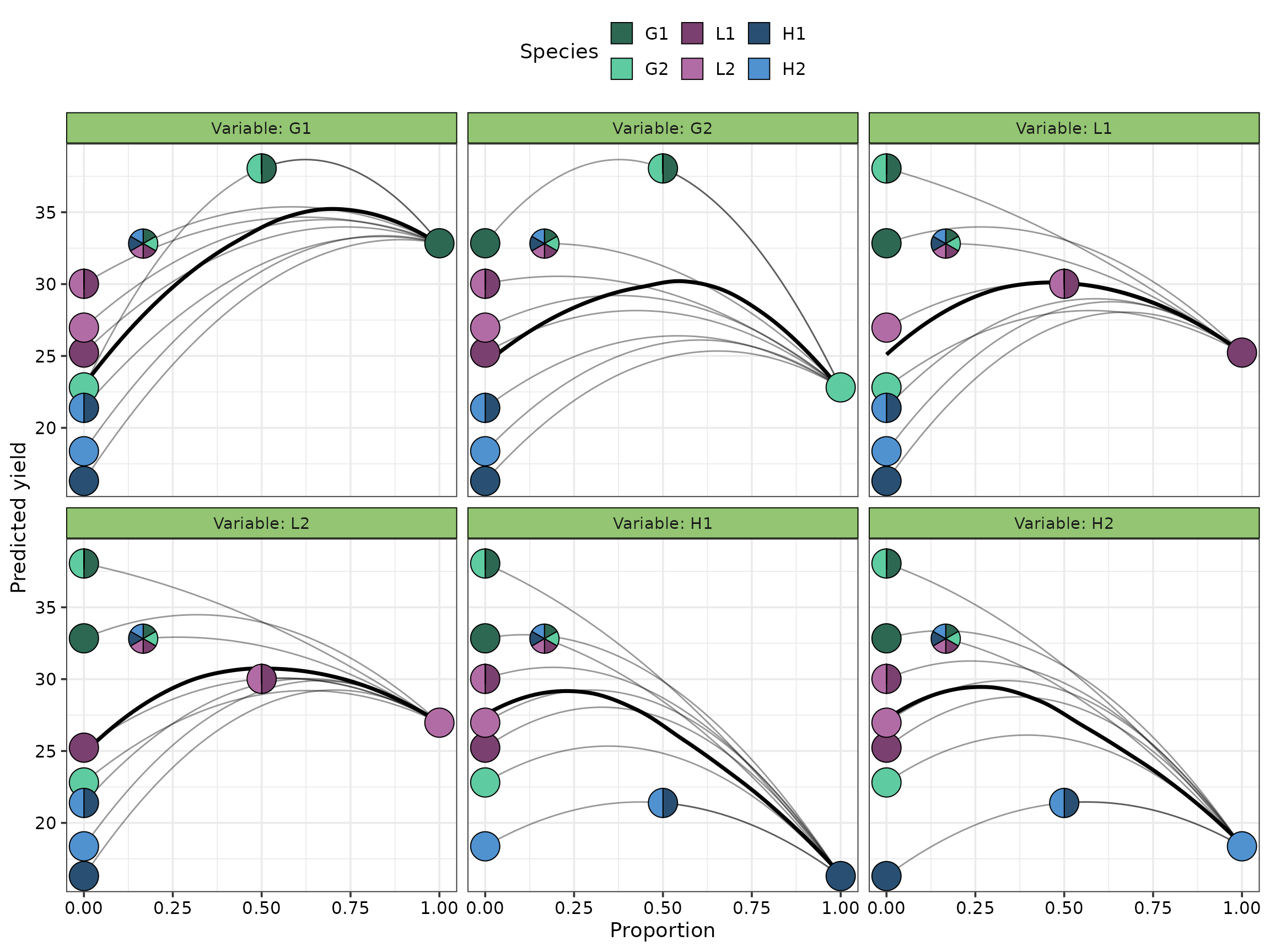

Passing this data to visualise_effects_plot function results in the following plot.

visualise_effects_plot(data = plot_data)
#> ✔ Created plot.

Increasing the proportion of p1 always results in an increase in the predicted response while increasing the proportion of p3 could increase or decrease the predicted response depending on the proportion of the other species in the community.

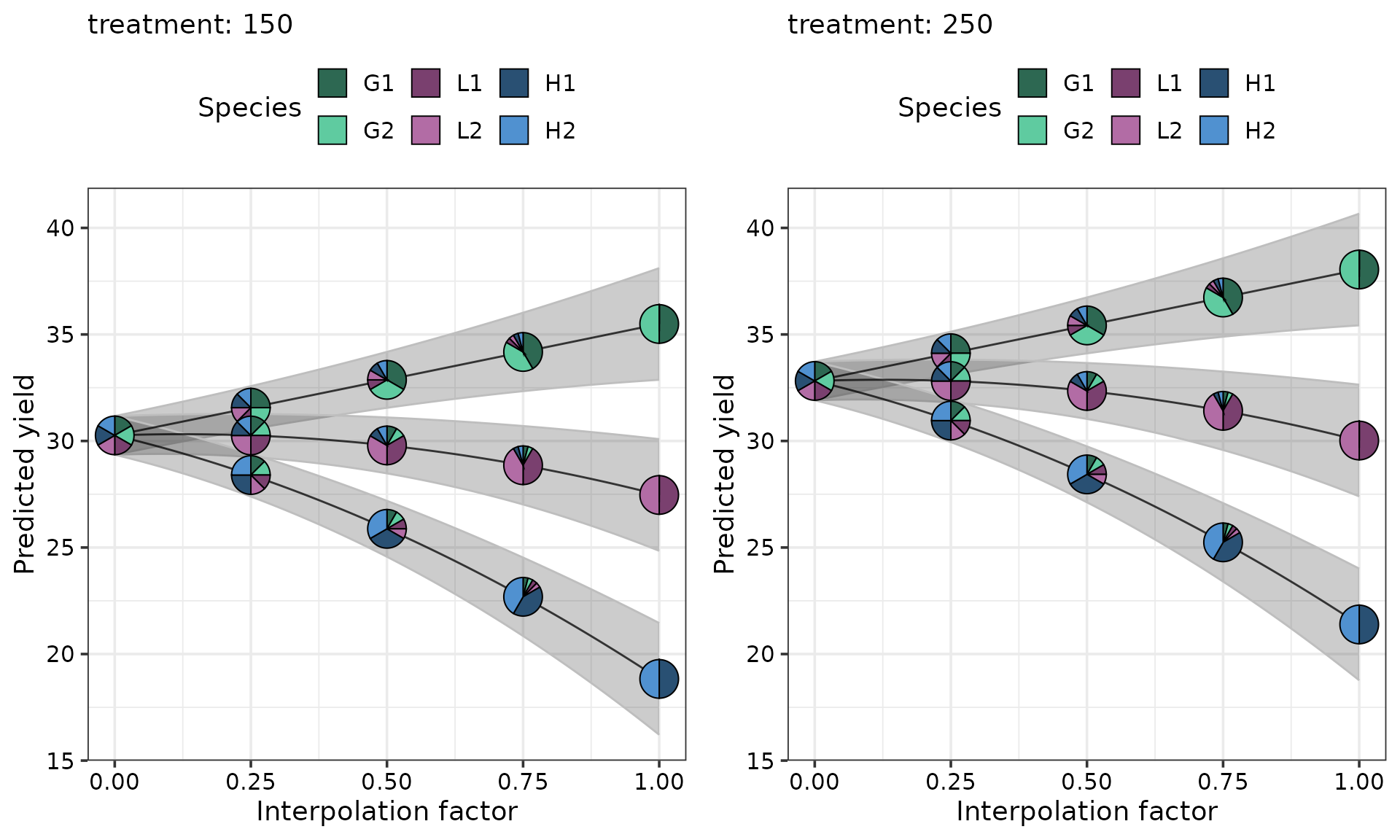

Change in response across the simplex space

This function is a more general version of effects plots and helps to visualise the change in the response as we move in a straight line between two points across the simplex space. Mathematically, this is equivalent to changing the proportion of multiple compositional variables whilst keeping the ratio of the remaining variables constant.

To use simplex_path_data we should specify a data-frame consisting of starting and ending communities. In this example, we specify the six-species centroid mixture as our starting community and see the change in the response as we move towards the monoculture of each of the six species across all three fertiliser treatments.

Note: Just like effect_plot_data, we use prediction = FALSE to create the template of species proportion first and then add the interaction structure, followed by a call to the add_prediction function to add the predictions to the resultant data.

The data is expanded to include the following columns * .InterpConst: The interpolation constant between the start and end points (will be between 0 and 1). * .Group: An identifier for creating the effects curve. * .Pred: The predicted response for a community. * .Lower: The lower interval (at $\alpha = 0.05$ level) for the predicted response. * .Upper: The upper interval (at $\alpha = 0.05$ level) for the predicted response.

start_comm <- model_data %>% filter(richness == 6) %>%
  distinct(treatment, .keep_all = TRUE) %>%
  slice(rep(1:3, each = 6))

end_comm <- model_data %>% filter(richness == 1) %>%
  distinct(p1, p2, p3, p4, p5, p6, treatment, .keep_all = TRUE)

plot_data <- simplex_path_data(starts = start_comm,
                               ends = end_comm,
                               prop = species,
                               prediction = FALSE)
#> ✔ Finished data preparation.
plot_data <- plot_data %>% mutate(AV = DI_data_E_AV(data = .,
                                                    prop = species)$AV)
plot_data <- add_prediction(plot_data, model = mod, interval = "confidence")
head(plot_data)
#>          p1        p2        p3        p4        p5        p6 richness
#> 1 0.1666667 0.1666667 0.1666667 0.1666667 0.1666667 0.1666667        6
#> 2 0.1750000 0.1650000 0.1650000 0.1650000 0.1650000 0.1650000        6
#> 3 0.1833333 0.1633333 0.1633333 0.1633333 0.1633333 0.1633333        6
#> 4 0.1916667 0.1616667 0.1616667 0.1616667 0.1616667 0.1616667        6
#> 5 0.2000000 0.1600000 0.1600000 0.1600000 0.1600000 0.1600000        6
#> 6 0.2083333 0.1583333 0.1583333 0.1583333 0.1583333 0.1583333        6
#>   treatment response        AV .InterpConst .Group    .Pred   .Lower   .Upper
#> 1        50   25.118 0.4166667         0.00      1 25.72958 24.25535 27.20380
#> 2        50   25.118 0.4166250         0.01      1 25.82189 24.34775 27.29602
#> 3        50   25.118 0.4165000         0.02      1 25.91324 24.43936 27.38712
#> 4        50   25.118 0.4162917         0.03      1 26.00364 24.53020 27.47709
#> 5        50   25.118 0.4160000         0.04      1 26.09309 24.62025 27.56593
#> 6        50   25.118 0.4156250         0.05      1 26.18158 24.70952 27.65364

This data is passed to the simplex_path_plot function to create the data for creating the plot. We use facet_var to show a separate panel for each treatment and also show the uncertainty around the prediction using se = TRUE.

simplex_path_plot(data = plot_data, se = TRUE,
                  facet_var = "treatment")
#> ✔ Created plot.

At "50" kg and "150" kg of fertiliser treatment, increasing the proportion of p1 results in a higher predicted response, while increasing the proportion of other species decreases the predicted response. At "250" kg of fertilisation all monocultures perform worse than the centroid community and thus increasing their proportion decreases the response.

Conditional ternary plot

We fix n-3 variables to have a constant value $p_1, p_2, p_3, ..., p_{n-3}$ such that $P = p_1 + p_2 + p_3 + ... p_{n - 3}$ and $0 \leq P \leq 1$ and vary the proportion of the remaining three variables between $0$ and $1-P$ to visualise the change in the predicted response as a contour map within a ternary diagram.

In this example we create two ternary diagrams showing the effect of changing the proportion of species p1, p5 and p6; One where p2 = 0 and p3 = 0.3 and second with p2 = 0.2 and p3 = 0.3. Any compositional variables not specified would be assumed to be 0 (thus p4 = 0 in both diagrams).

We also use the add_var parameter to specify that the treatment value should be "50" and "250" for the plots. This could ignored and we could add the treatment value after creating the template, but the benefit of using add_var is that it adds an identifier to the data which is used to automatically create a separate panel for each value of treatment.

Since the interaction term is dependent on the species proportions, we use prediction = FALSE to create the template of proportions first, then add the interaction term. Finally, the add_prediction function is called to add the predictions to the data.

plot_data <- conditional_ternary_data(prop = species,
                                      tern_vars = c("p1", "p5", "p6"),
                                      add_var = list("treatment" = c("50", "250")),
                                      conditional = data.frame("p2" = c(0, 0.3),
                                                               "p3" = c(0.2, 0.3)),
                                      prediction = FALSE)
#> ✔ Finished data preparation.

plot_data <- plot_data %>% mutate(AV = DI_data_E_AV(data = .,
                                                    prop = species)$AV)
plot_data <- add_prediction(plot_data, model = mod)
head(plot_data)
#>   p1        p5          p6          .x .y p2  p3 treatment   .add_str_ID p4
#> 1  0 0.8000000 0.000000000 0.000000000  0  0 0.2        50 treatment: 50  0
#> 2  0 0.7986644 0.001335559 0.001669449  0  0 0.2        50 treatment: 50  0
#> 3  0 0.7973289 0.002671119 0.003338898  0  0 0.2        50 treatment: 50  0
#> 4  0 0.7959933 0.004006678 0.005008347  0  0 0.2        50 treatment: 50  0
#> 5  0 0.7946578 0.005342237 0.006677796  0  0 0.2        50 treatment: 50  0
#> 6  0 0.7933222 0.006677796 0.008347245  0  0 0.2        50 treatment: 50  0
#>      .Sp .Value           .Facet        AV    .Pred
#> 1 p2, p3 0, 0.2 p2 = 0; p3 = 0.2 0.1600000 17.14093
#> 2 p2, p3 0, 0.2 p2 = 0; p3 = 0.2 0.1610667 17.15593
#> 3 p2, p3 0, 0.2 p2 = 0; p3 = 0.2 0.1621298 17.17088
#> 4 p2, p3 0, 0.2 p2 = 0; p3 = 0.2 0.1631893 17.18579
#> 5 p2, p3 0, 0.2 p2 = 0; p3 = 0.2 0.1642453 17.20066
#> 6 p2, p3 0, 0.2 p2 = 0; p3 = 0.2 0.1652976 17.21549

We pass this data to the conditional_ternary_plot function to create the plot. We specify nrow = 2 to arrange the plots for the two treatments in two rows.

conditional_ternary_plot(data = plot_data, nrow = 2)
#> ✔ Created all plots.

The predicted response is maximised as we increase the proportion of p1 and a higher fertilisation results in higher predicted response.

Grouped ternary plot

Sometimes, the compositional variables could be combined and grouped to reduce the number of variables. In this data the species p1 and p2 are assumed to be grasses, p3 and p4 are legumes, and p5 and p6 are herbs, thus we could combine these species to have three (grasses, legumes and herbs) compositional variables instead of six.

Using the grouped_ternary_data function we can visualise the change in the response as we change the proportion of grasses, legume, and herbs. The species are specified using the prop argument, while the group each species belongs to is specified using FG. There is a one-to-one mapping between prop and FG, thus for example p1 and p2 belong to the group "Gr". There is also flexibility to adjust the proportion of the species within the functional group as well using the values parameter. In this example, each species within a group is 50% of the total group proportion. All other parameters are same as conditional_ternary_data. See ?grouped_ternary_data for more information.

plot_data <- grouped_ternary_data(prop = c("p1", "p2", "p3", "p4", "p5", "p6"),
                                  FG = c("Gr", "Gr", "Le", "Le", "He", "He"),
                                  values = c(0.5, 0.5, 0.5, 0.5, 0.5, 0.5),
                                  add_var = list("treatment" = c("50","250")),
                                  prediction = FALSE)
#> ✔ Finished data preparation.

plot_data <- plot_data %>% mutate(AV = DI_data_E_AV(data = .,
                                                    prop = species)$AV)
plot_data <- add_prediction(plot_data, model = mod)

We pass this data to the grouped_ternary_plot function to create the plot. We specify nrow = 2 to arrange the plots for the two treatments in two rows.

grouped_ternary_plot(data = plot_data, nrow = 2)
#> ✔ Created all plots.

The figure shows that the predicted response is higher for the "250" kg treatment across the entire simplex space and within a given level of fertilisation the response is maximised by increasing the proportion of grasses and legumes.
