Using DImodelsVis with regression models fit using the `DImodelsMulti` R package

DImodelsVis-with-DImodelsMulti-models.Rmd

Loading necessary libraries

Data exploration

Load data

head(dataBEL)
#>   Plot  G1  G2  L1  L2 Density  Var VarNum       Y
#> 1    1 0.7 0.1 0.1 0.1       1 Sown      1 104.156
#> 2    1 0.7 0.1 0.1 0.1       1 Weed      2 100.058
#> 3    1 0.7 0.1 0.1 0.1       1    N      3  87.996
#> 4    2 0.1 0.7 0.1 0.1       1 Sown      1  82.547
#> 5    2 0.1 0.7 0.1 0.1       1 Weed      2  89.801
#> 6    2 0.1 0.7 0.1 0.1       1    N      3  72.239

Visualisations for data exploration

Model fitting

# Name of compositional predictors (species)
species <- c("G1", "G2", "L1", "L2")
# Functional groupings of species
FG <- c("Gr", "Gr", "Le", "Le")
# Colours to be used for pie-glyphs for all figures
pie_cols <- get_colours(vars = species, FG = FG)

model <- DImulti(prop = species, FG = FG, y = "Y",
                 eco_func = c("Var", "un"),
                 unit_IDs = "Plot", DImodel = "AV",
                 extra_fixed = ~ Density,
                 method = "REML", data = dataBEL)
model
#> Note:
#> Method Used = REML
#> Correlation Structure Used = un
#>  Average Term Model
#> Theta value(s) = 1,1,1
#>
#> Generalized least squares fit by REML
#>   Model: Y ~ 0 + Var:((G1_ID + G2_ID + L1_ID + L2_ID + AV) + Density)
#>       AIC       BIC    logLik
#>  546.6895  601.3295 -249.3448
#>
#>  Multivariate Correlation Structure: General
#>  Formula: ~0 | Plot
#>  Parameter estimate(s):
#>  Correlation:
#>   1      2
#> 2  0.768
#> 3 -0.172  0.386
#>
#>
#> Table: Fixed Effect Coefficients
#>
#>                    Beta      Std. Error   t-value   p-value     Signif
#> -----------------  --------  -----------  --------  ----------  -------
#> VarN:G1_ID         +49.744   5.279        9.422     3.435e-14   ***
#> VarSown:G1_ID      +66.403   4.382        15.154    4.284e-24   ***
#> VarWeed:G1_ID      +74.745   8.892        8.406     2.672e-12   ***
#> VarN:G2_ID         +33.803   5.279        6.403     1.367e-08   ***
#> VarSown:G2_ID      +47.874   4.382        10.925    6.141e-17   ***
#> VarWeed:G2_ID      +86.027   8.892        9.675     1.17e-14    ***
#> VarN:L1_ID         +93.968   5.279        17.799    4.453e-28   ***
#> VarSown:L1_ID      +75.000   4.382        17.115    4.386e-27   ***
#> VarWeed:L1_ID      +54.307   8.892        6.108     4.65e-08    ***
#> VarN:L2_ID         +72.789   5.279        13.787    6.904e-22   ***
#> VarSown:L2_ID      +49.665   4.382        11.334    1.138e-17   ***
#> VarWeed:L2_ID      +38.226   8.892        4.299     5.293e-05   ***
#> VarN:AV            +67.685   11.012       6.147     3.96e-08    ***
#> VarSown:AV         +86.495   9.140        9.464     2.879e-14   ***
#> VarWeed:AV         +83.296   18.546       4.491     2.636e-05   ***
#> VarN:Density1      -1.261    3.072        -0.410    0.6827
#> VarSown:Density1   +2.290    2.550        0.898     0.3721
#> VarWeed:Density1   +0.991    5.173        0.192     0.8486
#>
#> Signif codes: 0-0.001 '***', 0.001-0.01 '**', 0.01-0.05 '*', 0.05-0.1 '+', 0.1-1.0 ' '
#>
#> Degrees of freedom: 90 total; 72 residual
#> Residual standard error: 8.412329
#>
#> Marginal variance covariance matrix
#>            N   Sown    Weed
#> N     70.767 45.118 -20.506
#> Sown  45.118 48.753  38.136
#> Weed -20.506 38.136 200.730
#>   Standard Deviations: 8.4123 6.9823 14.168

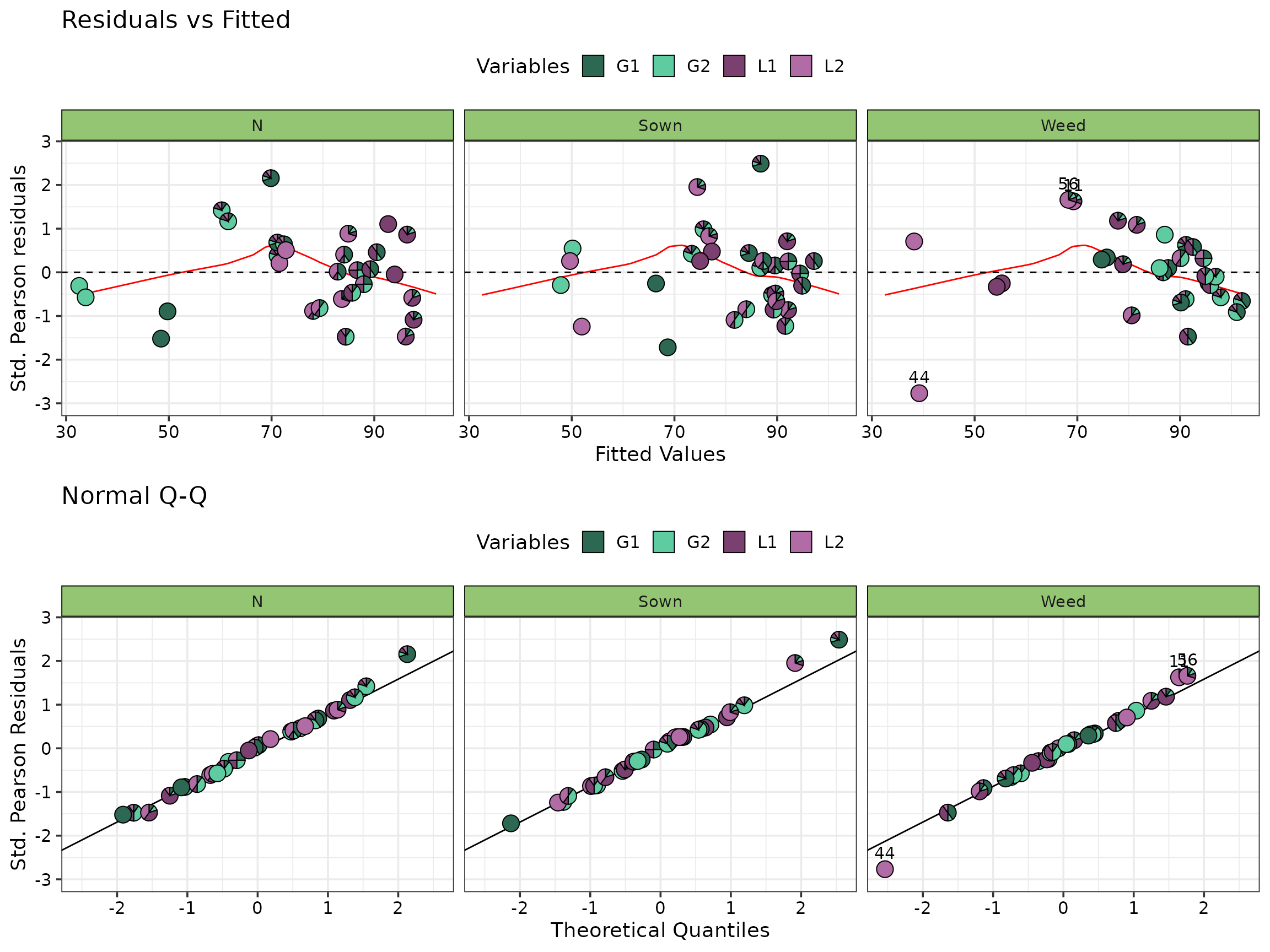

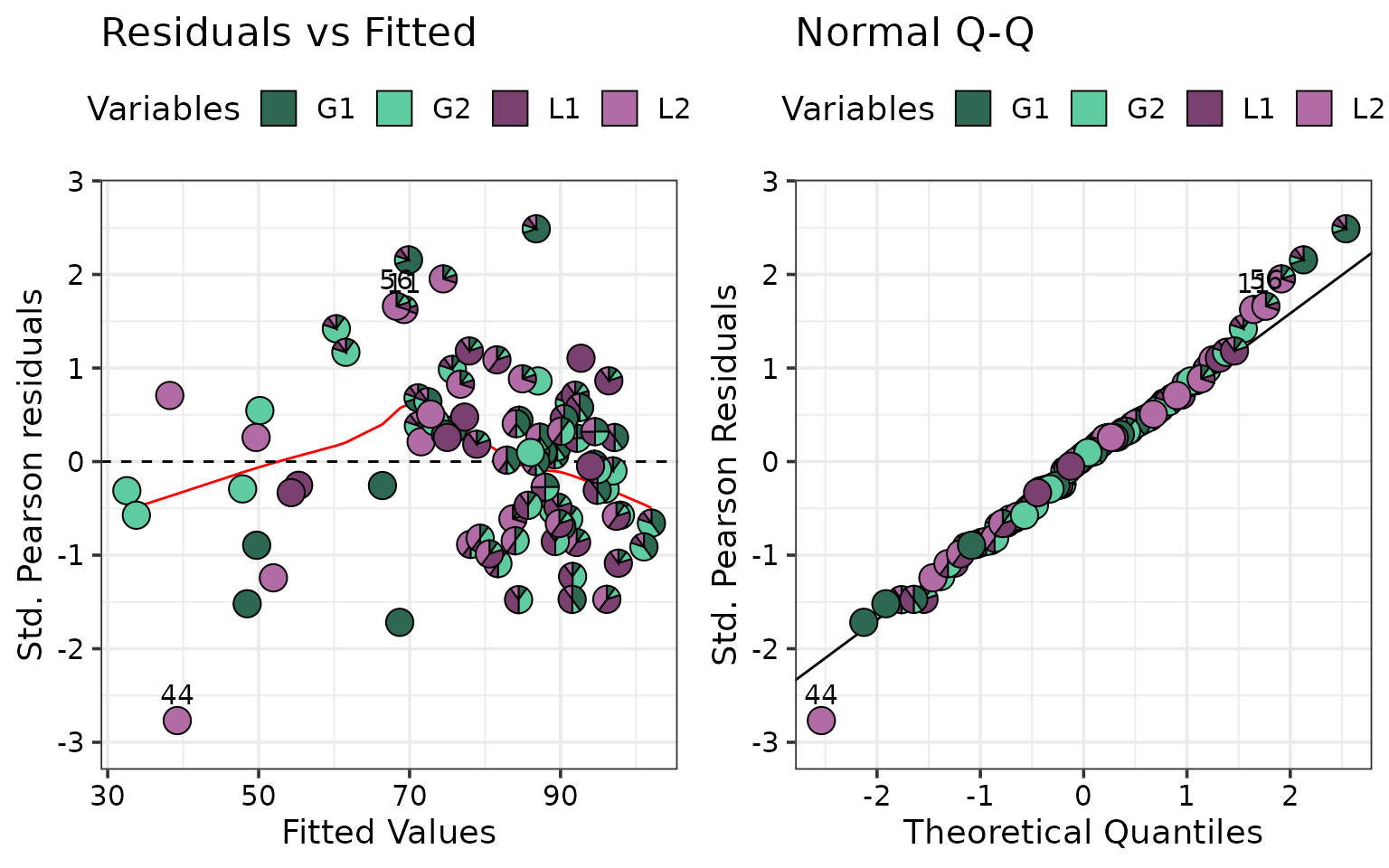

model_diagnostics(model = model, which = c(1, 2), nrow = 1)

model_diagnostics(model = model, which = c(1, 2), nrow = 2) +
  facet_wrap(~Var)

grad_data <- get_equi_comms(4, variables = c("G1", "G2", "L1", "L2")) %>%
  mutate("Rich." = Richness,
         "Density" = factor(1, levels = c(-1, 1)))

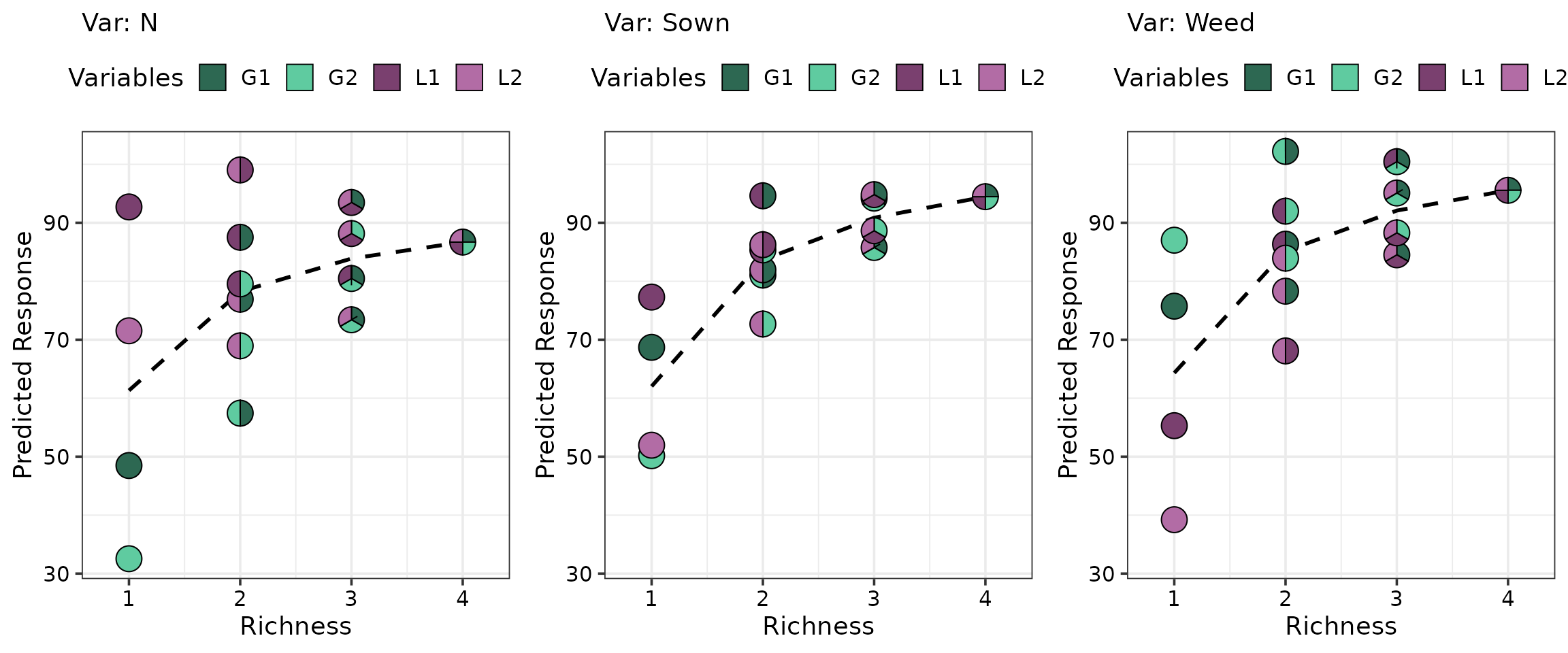

gradient_change(model = model, data = grad_data, nrow = 1)

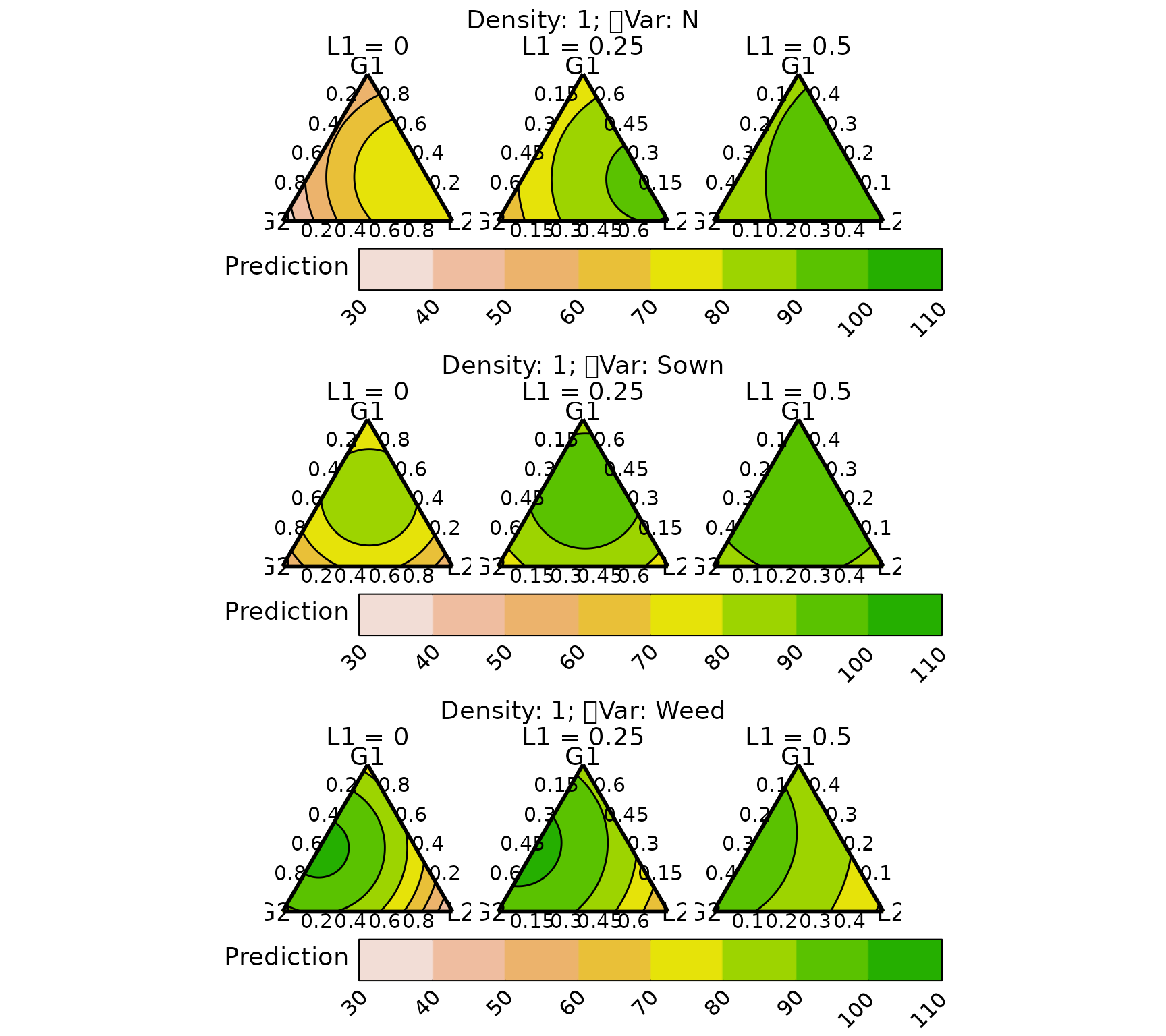

conditional_ternary(model = model, resolution = 1,
                    tern_vars = c("G1", "G2", "L2"),
                    conditional = data.frame(L1 = c(0, 0.25, 0.5)),
                    lower_lim = 30, upper_lim = 110, nlevels = 8,
                    add_var = list("Density" = factor(1, levels = c(-1, 1))),
                    nrow = 3)

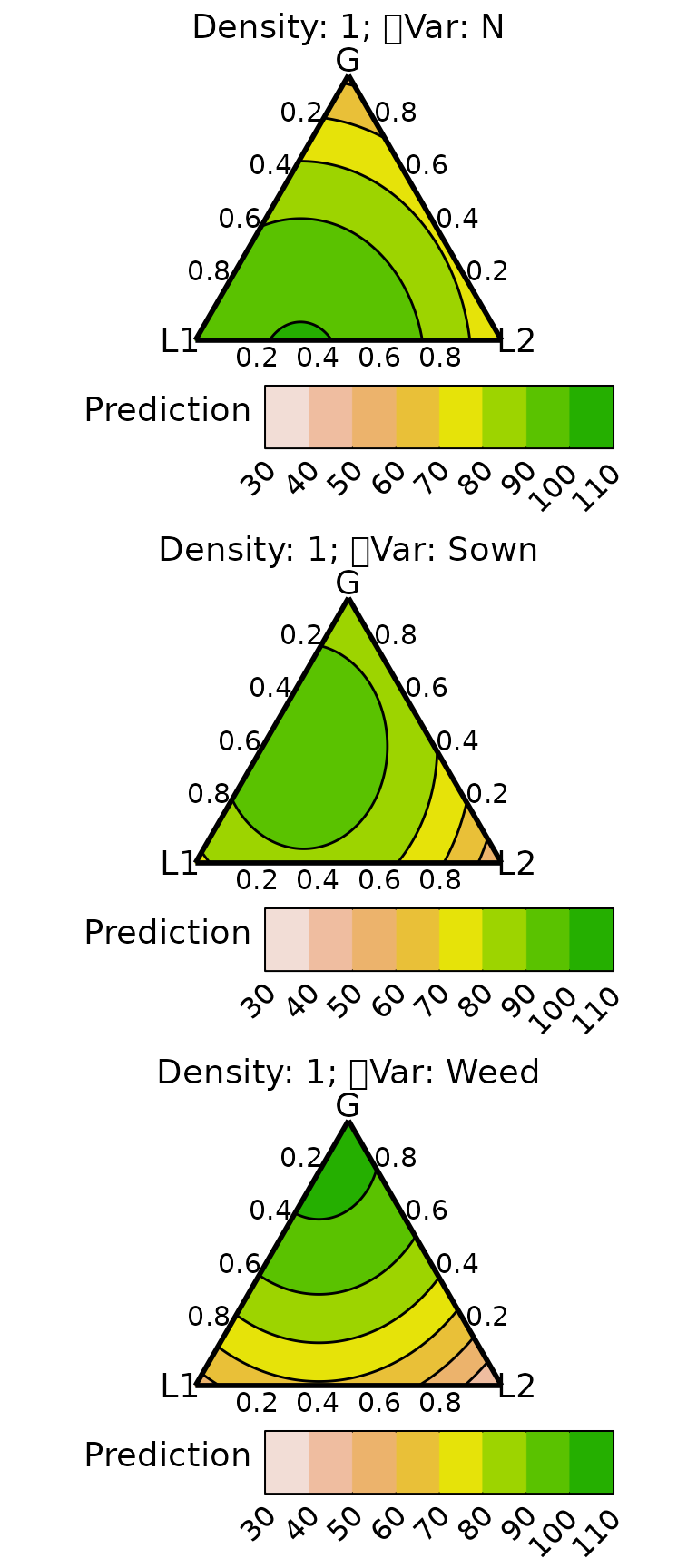

grouped_ternary(model = model, resolution = 1,
                FG = c("G", "G", "L1", "L2"),
                # Split of species within each group
                values = c(0.5, 0.5, 1, 1),
                lower_lim = 30, upper_lim = 110, nlevels = 8,
                add_var = list("Density" = factor(1, levels = c(-1, 1))),
                nrow = 3)

eff_data <- get_equi_comms(4, variables = c("G1", "G2", "L1", "L2")) %>%
  mutate("Rich." = Richness)

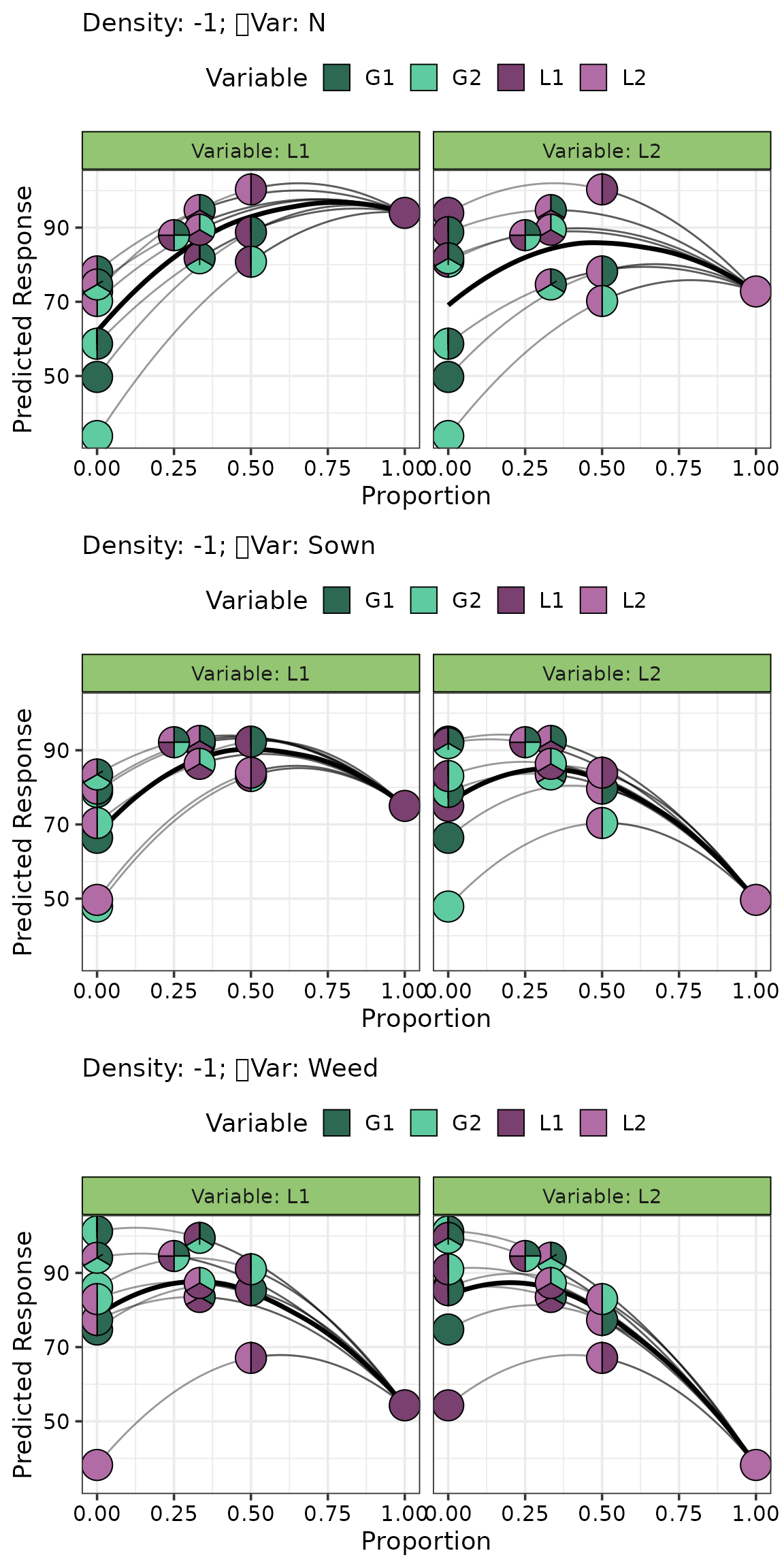

visualise_effects(model = model, data = eff_data,
                  add_var = list("Density" = factor(-1, levels = c(-1, 1))),
                  var_interest = c("L1", "L2"), nrow = 3)

# The centroid community (starting point for the straight line)
starts <- tribble( ~G1,  ~G2,  ~L1,  ~L2,
                  0.25, 0.25, 0.25, 0.25)
# The six binary mixtures (ending points for the straight lines)
ends <- tribble(~G1,    ~G2,  ~L1,  ~L2,
                  0.5,  0.5,    0,    0,
                  0.5,    0,  0.5,    0,
                  0.5,    0,    0,  0.5,
                    0,  0.5,  0.5,    0,
                    0,  0.5,    0,  0.5,
                    0,    0,  0.5,  0.5)

# Create the visualisation

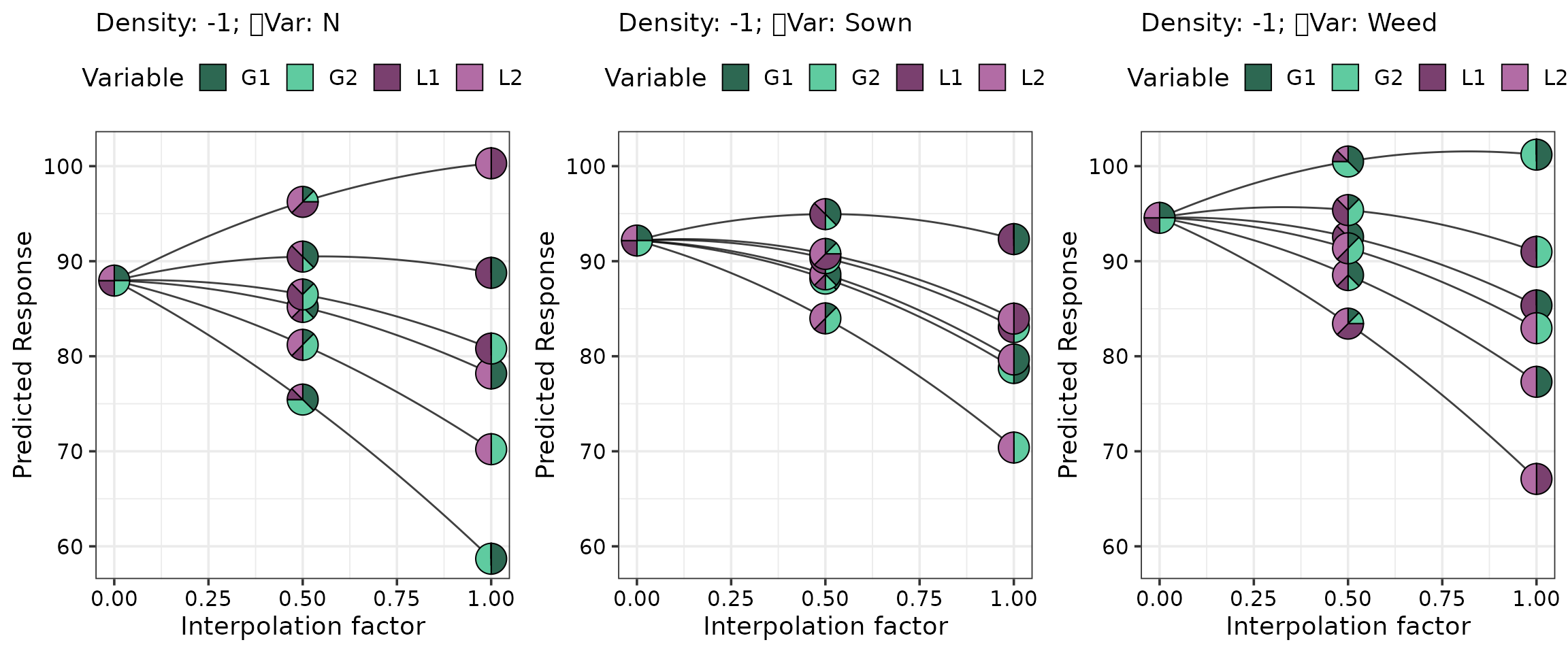

simplex_path(model = model,
             add_var = list("Density" = factor(-1, levels = c(-1, 1))),
             starts = starts, ends = ends,
             nrow = 1)

pred_data <- get_equi_comms(4, richness_lvl = c(1, 2, 4),
                            variables = c("G1", "G2", "L1", "L2")) %>%
  mutate(labels = c("G1_mono", "G1_mono", "G1_mono", "L2_mono",
                    "G1-G2", "G1-L1", "G1-L2", "G2-L1", "G2-L2", "L1-L2",
                    "Centroid")) %>%
  add_add_var(add_var = list("Var" = c("N", "Sown", "Weed"))) %>%
  mutate(G1_ID = G1, G2_ID = G2, L1_ID = L1, L2_ID = L2,
         "Density" = factor(-1, levels = c(-1, 1)),
         AV = DI_data_E_AV(prop = 1:4, data = .)$AV,
         "Rich." = Richness)

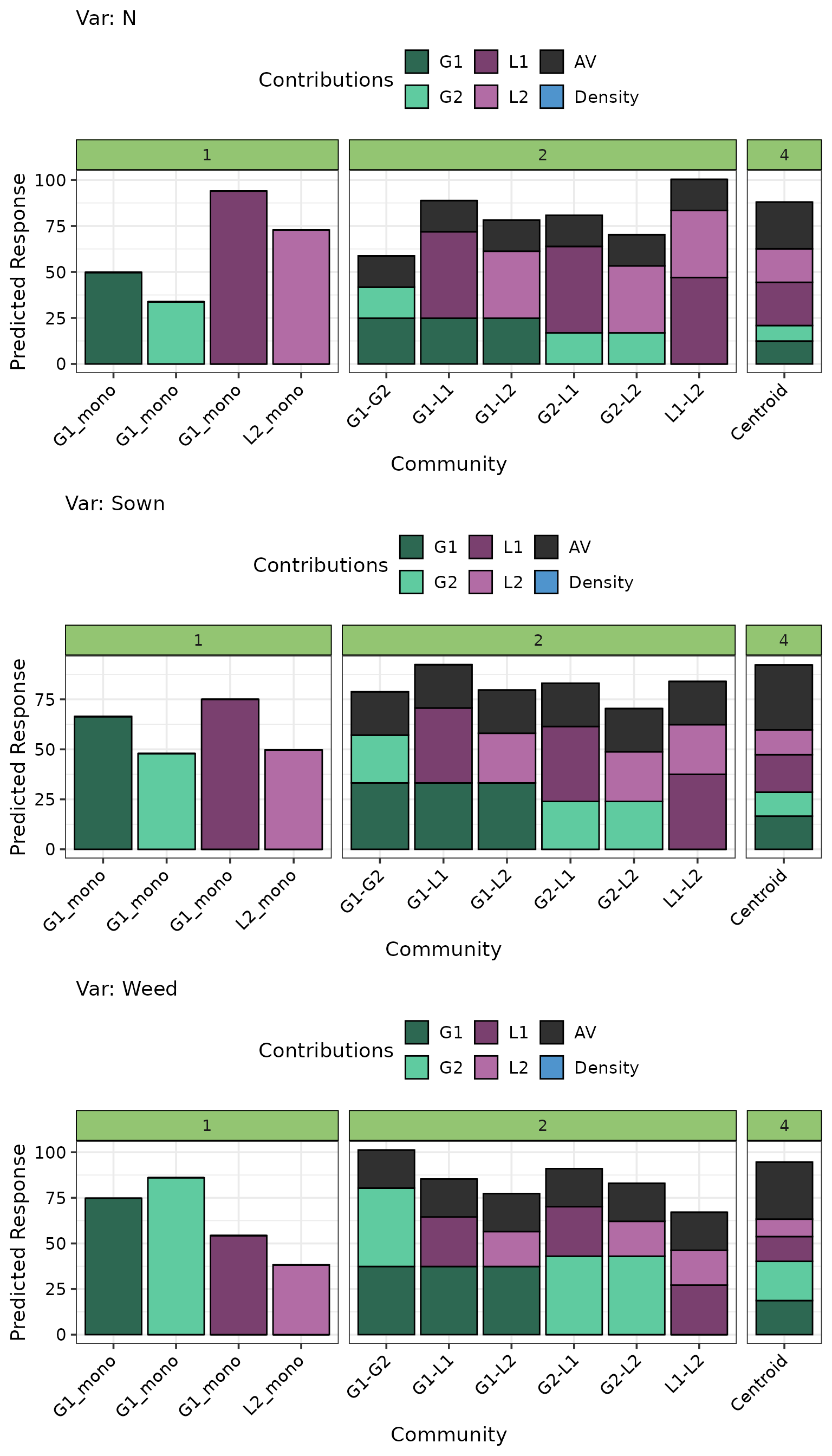

prediction_contributions_data(data = pred_data, model = model,
                              bar_labs = "labels",
                              groups = list("G1" = 1:3, "G2" = 4:6,
                                            "L1" = 7:9, "L2" = 10:12,
                                            "AV" = 13:15, "Density" = 16:18)) %>%
  prediction_contributions_plot(colours = c(pie_cols, "#303030", "steelblue3"),
                                nrow = 3) +
  facet_grid(~ Rich., scale = "free_x", space = "free_x") +
  theme(axis.text.x = element_text(angle = 45, hjust = 1.1, vjust = 1.1))
