This vignette shows an example of how DImodelsVis can be used to visualise the response surface across the simplex space using black-box style models such as neural networks or random forests. Note that, while we show limited examples in this vignetted, it is worth noting that all visualisations in the package except for model diagnostics and prediction contributions plots can be created for black-box style models.

Data

For this example we simulate a dataset containing 200 soil samples with varying proportions of sand, silt and clay, constrained to sum to one. The response variable is soil organic carbon (SOC) and was simulated to reflect that soils richer in clay have higher SOC, those with more silt have moderate SOC, and those dominated by sand have lower SOC.

# For reproducability
set.seed(123)

# Number of samples
n <- 200

# Simulate 3d compositional data
# Assume equal density for each variable
alpha <- c(1, 1, 1)
X <- matrix(rgamma(n * length(alpha), shape = alpha), ncol = length(alpha), byrow = TRUE)
X <- X / rowSums(X)  # normalize to sum to 1
colnames(X) <- c("Sand", "Silt", "Clay")

# Simulate Soil organic carbon (SOC) to be used as a response
# We assume, SOC is higher for higher clay content, lower for sand, moderate for silt
SOC <- 4 + 5*X[, "Clay"] - 2*X[, "Sand"] + 1*X[, "Silt"] + rnorm(n, 0, 0.5)

# Combine the compositional predictors and continuous response into data frame
soil_data <- data.frame(X, SOC)

# Snippet of data
head(soil_data)
#>         Sand       Silt       Clay      SOC
#> 1 0.05207917 0.48465979 0.46326105 6.418575
#> 2 0.40839428 0.14664048 0.44496524 5.772358
#> 3 0.70241947 0.17418870 0.12339183 3.876166
#> 4 0.02781371 0.76193153 0.21025476 5.958198
#> 5 0.14917454 0.06014499 0.79068047 7.389891
#> 6 0.38854192 0.59306319 0.01839489 4.266738

Visualising raw data

We create a ternary diagram using the tenrary_plot() function showing the spread of data across the 3d simplex space. The points are coloured by SOC values, with higher values colour green and lower values given shades of pink and white.

ternary_plot(
  # Compositional variables
  prop = c("Sand", "Silt", "Clay"),
  # Labels for ternary axes
  tern_labels = c("Sand", "Silt", "Clay"),
  # Data with compositional variables
  data = soil_data,
  # Show raw data as points instead of a contour map
  show = "points",
  # Colour points by SOC variable
  col_var = "SOC")
#>  Created plot.

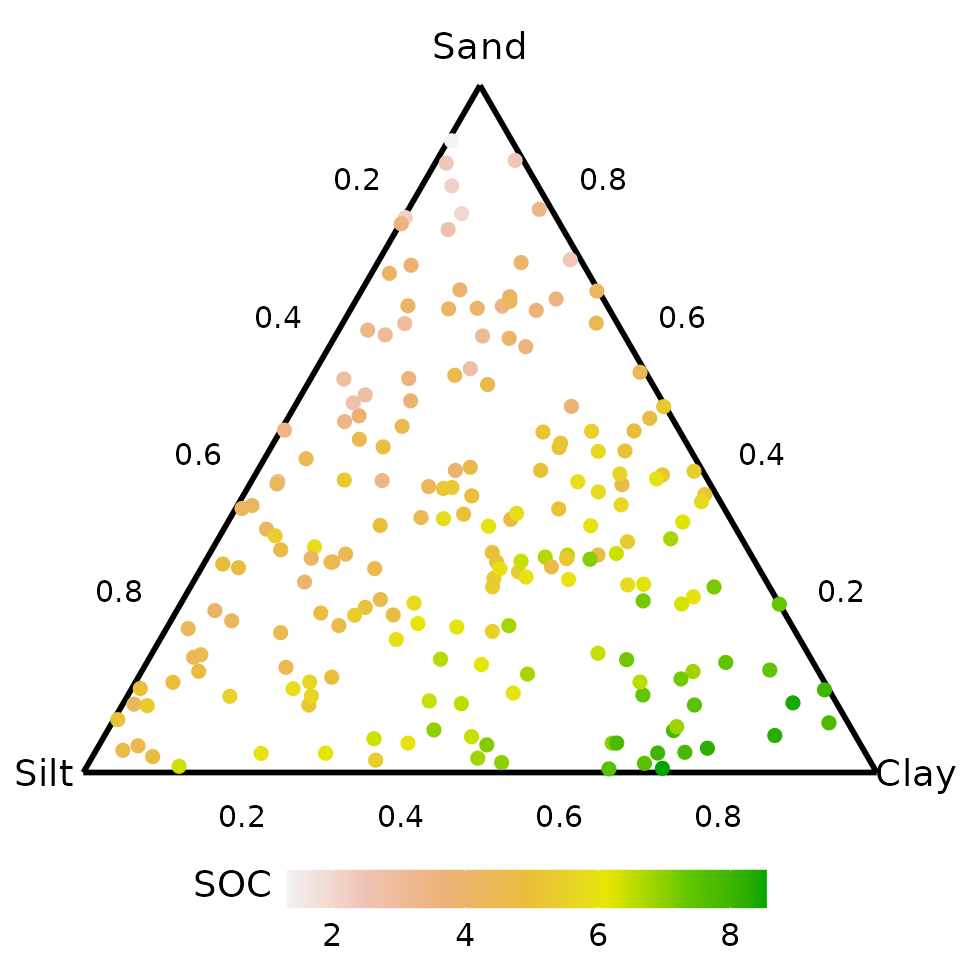

Plot of raw data in ternary

Neural network

We fit a basic neural network containing a single hidden layer with seven nodes to the soil data using the proportions of sand, silt, and clay as predictors. Additional parameters such as decay, linout, maxit are set (explained in code) at specific values to ensure predictions are consistent across successive runs of the neural network.

# Seed to ensure weight initialisation is reproducible
set.seed(737)

nn_model <- nnet(SOC ~ Sand + Silt + Clay,
                 data = soil_data,
                 size = 7,            # Seven nodes in hidden layer
                 decay = 0.01,        # Parameter for weight decay (helps stabilise predictions)
                 linout = TRUE,       # Boolean to indicate continuous predictions
                 maxit = 1000)        # Number of iterations
#> # weights:  36
#> initial  value 5889.515493
#> iter  10 value 92.408488
#> iter  20 value 59.759351
#> iter  30 value 55.918516
#> iter  40 value 55.340256
#> iter  50 value 54.565252
#> iter  60 value 54.080642
#> iter  70 value 54.008865
#> iter  80 value 53.986853
#> iter  90 value 53.836320
#> iter 100 value 53.795719
#> iter 110 value 53.792304
#> iter 120 value 53.791058
#> iter 130 value 53.790159
#> iter 140 value 53.790024
#> iter 150 value 53.789949
#> final  value 53.789940
#> converged
nn_model
#> a 3-7-1 network with 36 weights
#> inputs: Sand Silt Clay
#> output(s): SOC
#> options were - linear output units  decay=0.01


Visualise response surface across ternary

The predicted SOC surface across the 3d simplex space is visualised here. We first generated the grid of points across the simplex space using the ternary_data() function and then use the neural network to predict the SOC. The data.frame containing the grid of points and corresponding predicted SOC is then passed to the ternary_plot() function for visualising the response surface.

While we set the prediction = FALSE argument here and add the predictions at a later step using the add_prediction() function from DImodelsVis. Users can also use the base R predict() function or any custom function of their choice which returns the predicted response from a black-box model.

# Prepare data
ternary_grid <- ternary_data(# Compositional predictors
                             prop = c("Sand", "Silt", "Clay"),
                             # Don't make predictions now and only return template
                             prediction = FALSE)

head(ternary_grid)
#>   Sand      Silt        Clay          .x .y
#> 1    0 1.0000000 0.000000000 0.000000000  0
#> 2    0 0.9983306 0.001669449 0.001669449  0
#> 3    0 0.9966611 0.003338898 0.003338898  0
#> 4    0 0.9949917 0.005008347 0.005008347  0
#> 5    0 0.9933222 0.006677796 0.006677796  0
#> 6    0 0.9916528 0.008347245 0.008347245  0

The predicted response from the neural network can now be added to the data template created by the ternary_data() function.

# Add the predicted response to data
plot_data <- add_prediction(# Grid data from ternary_data() function
                            data = ternary_grid,
                            # Model to use for making predictions
                            model = nn_model,
                            # No uncertainty interval added to data
                            interval = "none")

# The predicted response is added as a column called .Pred
head(plot_data)
#>   Sand      Silt        Clay          .x .y    .Pred
#> 1    0 1.0000000 0.000000000 0.000000000  0 5.065849
#> 2    0 0.9983306 0.001669449 0.001669449  0 5.070338
#> 3    0 0.9966611 0.003338898 0.003338898  0 5.074839
#> 4    0 0.9949917 0.005008347 0.005008347  0 5.079352
#> 5    0 0.9933222 0.006677796 0.006677796  0 5.083876
#> 6    0 0.9916528 0.008347245 0.008347245  0 5.088413

The response surface can be visualised as follows

# Create ternary plot
ternary_plot(data = plot_data,      # Compositional data with predicted response
             lower_lim = 1.5,       # Lower limit of fill scale
             upper_lim = 9.5,       # Upper limit of fill scale
             nlevels = 8,           # Number of colours for fill scale
             # Labels for ternary axes
             tern_labels = c("Sand", "Silt", "Clay")) +
  # ggplot function to add labels on plot
  labs(fill = "Predicted\nSOC")
#>  Created plot.

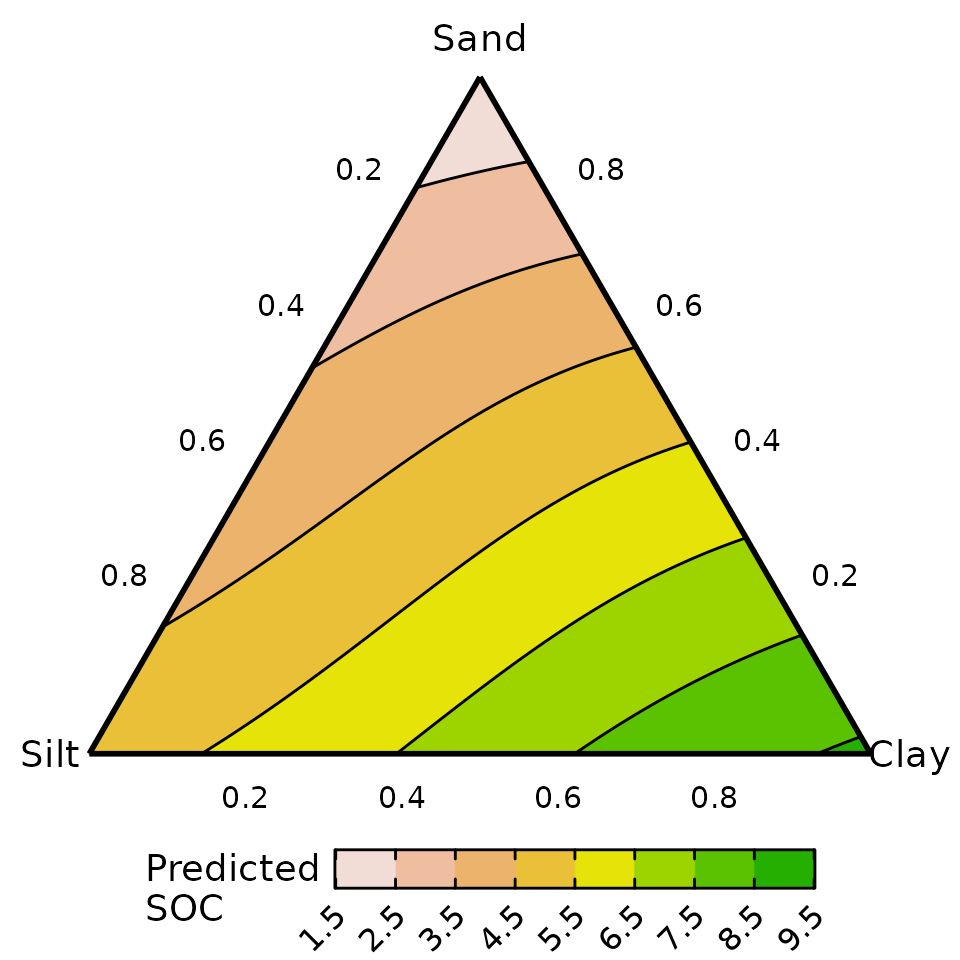

Ternary diagram showing SOC

The predicted SOC is higher in soil containing high proportions of clay and lower in soil containing high amounts of sand.


Effects plots for the compositional predictors

We can also generate effects plots for the compositional predictors in the neural network. First, the dataset needed for generating the effects plot is created using the visualise_effects_data() function. The predicted SOC is then added to the data using the add_prediction() function and the prepared data is passed onto the visualise_effects_plot() function for visualising the effects.

Users could also set prediction = TRUE and have the predictions added to the data in the data preparation step itself, as shown in the random-forest example later in the vignette.

# Compositions to be used for generating the effects plots.
# Not all are needed but having more initial compositions gives higher accuracy.
eff_data <- tribble(~"Sand", ~"Silt", ~"Clay",
                          1,       0,       0,
                          0,       1,       0,
                          0,       0,       1,
                        0.5,     0.5,       0,
                        0.5,       0,     0.5,
                          0,     0.5,     0.5,
                        0.8,     0.2,       0,
                        0.2,     0.8,       0,
                        0.8,       0,     0.2,
                        0.2,       0,     0.8,
                          0,     0.8,     0.2,
                          0,     0.2,     0.8,
                        0.6,     0.2,     0.2,
                        0.2,     0.6,     0.2,
                        0.2,     0.2,     0.6,
                        1/3,     1/3,     1/3)

# The data-preparation, adding predictions and plotting are done in a single dplyr pipeline here
# Prepare data
visualise_effects_data(# Data with initial compostions
                       data = eff_data,
                       # Column names for compositional predictors in data
                       prop = c("Sand", "Silt", "Clay"),
                       # Show effects plot for all compostional variables
                       var_interest = c("Sand", "Silt", "Clay"),
                       # Don't make predictions now and only return template
                       prediction = FALSE) %>%
  # Add predictions
  add_prediction(interval = "none",        # No uncertainty intervals
                 model = nn_model) %>%     # Model to use for making predictions
  # Print first few rows of data
  as_tibble() %>% print(n = 6) %>%
  # Create plot
  visualise_effects_plot() +
    # ggplot function to add labels on plot
    labs(y = "Predicted SOC")
#>  Finished data preparation.
#> # A tibble: 4,545 × 8
#>    Sand  Silt  Clay .Sp   .Proportion .Group .Effect  .Pred
#>   <dbl> <dbl> <dbl> <fct>       <dbl>  <int> <chr>    <dbl>
#> 1  0     1        0 Sand         0         1 increase  5.07
#> 2  0.01  0.99     0 Sand         0.01      1 increase  5.03
#> 3  0.02  0.98     0 Sand         0.02      1 increase  5.00
#> 4  0.03  0.97     0 Sand         0.03      1 increase  4.97
#> 5  0.04  0.96     0 Sand         0.04      1 increase  4.94
#> 6  0.05  0.95     0 Sand         0.05      1 increase  4.91
#> # ℹ 4,539 more rows
#>  Created plot.

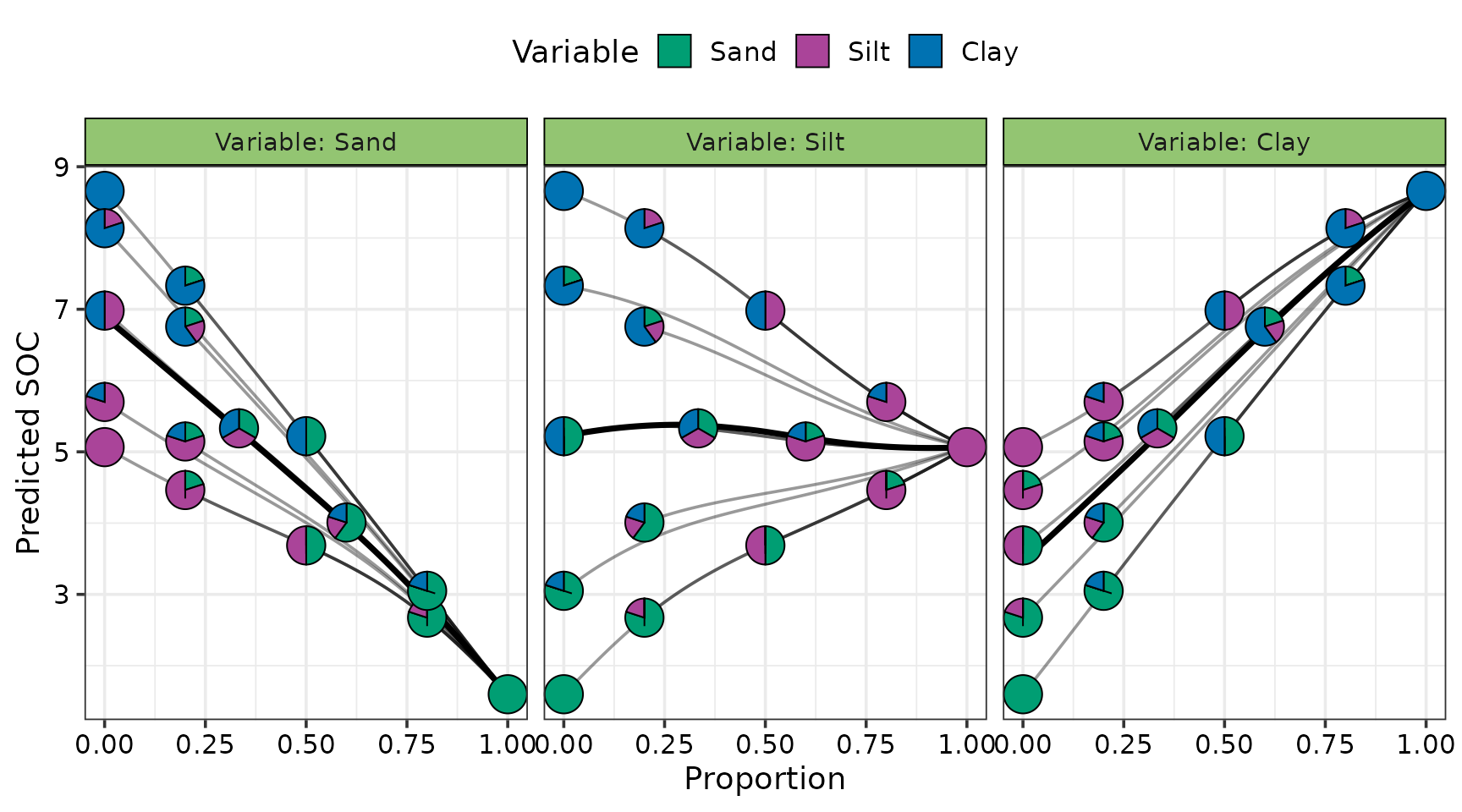

Effects plot for compositional predictors

Increasing the proportion of sand lowers SOC, while increasing clay raises it. The effect of silt depends on the soil context: it tends to increase SOC in sand-rich soils but reduce it in clay-rich soils, leading to an overall flat effect of silt on SOC.

Random forest model

We also show an example of using DImodelsVis with random forest models. The same pipeline as depicted above can be used with random forest models to create visualisations from DImodelsVis.

We first a random forest model using the proportions of sand, silt, and clay as well as their pairwise interactions as predictors.


forest_model <- randomForest(# Predictor for random forest model
                             SOC ~ Sand + Silt + Clay +
                               Sand:Silt + Silt:Clay + Sand:Clay,
                             # Data
                             data = soil_data,
                             # 5000 trees to be used random forest
                             ntree = 5000)
forest_model
#>
#> Call:
#>  randomForest(formula = SOC ~ Sand + Silt + Clay + Sand:Silt +      Silt:Clay + Sand:Clay, data = soil_data, ntree = 5000)
#>                Type of random forest: regression
#>                      Number of trees: 5000
#> No. of variables tried at each split: 1
#>
#>           Mean of squared residuals: 0.3552504
#>                     % Var explained: 82.15


Response surface across ternary using random forests

Similar to above, we could visualise the predicted response surface for SOC across the three dimensional simplex space using a ternary diagram. For this example, we also showcase the use of setting prediction = TRUE in the ternary_data() function to automatically add predictions to created grid of points for the ternary diagram. This prepared data is then passed to the ternary_plot() function to visualise the response surface.

The prediction = TRUE argument can be specified in any of the data preparation functions in the package to automatically add predictions to the prepared data. However, when working with complex models with multiple predictions, care should be taken as users may wish to supply values for these predictors other than the function’s defaults.

# Prepare data
ternary_data(# Names of compositional predictors
             prop = c("Sand", "Silt", "Clay"),
             # Model to use for making predictions
             model = forest_model,
             # Add predictions directly
             prediction = TRUE) %>%
  ternary_plot(lower_lim = 1.5,       # Lower limit of fill scale
             upper_lim = 9.5,       # Upper limit of fill scale
             nlevels = 8,           # Number of colours for fill scale
             # Labels for ternary axes
             tern_labels = c("Sand", "Silt", "Clay")) +
  # ggplot function to add labels on plot
  labs(fill = "Predicted\nSOC")
#>  Created plot.

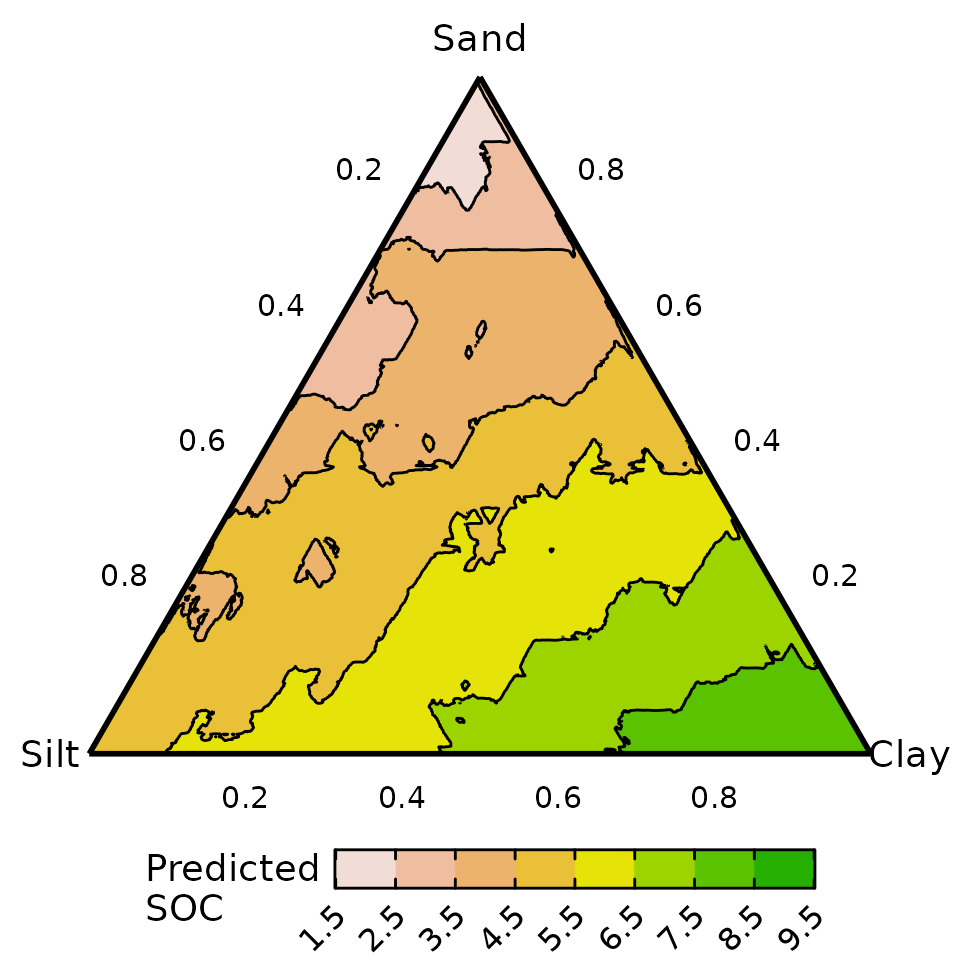

Response surface from random forest

A similar inference can be drawn as the neural network: predicted SOC is higher in soils with greater clay content and lower in those with higher sand content. However, the predicted response surface is noticeably more jagged for a random forest compared to a neural network or standard linear regression model. This could be improved by either fine tuning the model parameters further or by applying a post-processing smoothing operation over the predicted values.
